PRECISION AND POWER CONTROL

Disc brakes allow to maintain a clean aero form, while achieving maximum braking efficiency. The key benefit is the modulation of braking power with precision and complete control, in any condition.

ALL WEATHER CONDITIONS

Oltre XR3 hydraulic disc brakes are impervious to adverse weather conditions. By developing the disc brake equipped Oltre XR3, Bianchi allows you to ride perfect lines at the optimum speed – for every single corner, rain or shine.

PERFECT HANDLING

Thanks to Bianchi CV System and the consistent power, precision and modulation of disc brakes, the Bianchi Oltre XR3 Disc is the perfect-handling, fast, aero road bike – on any road, in any weather.

CLEARANCE

Oltre XR3 Disc frame and fork are designed to accommodate wider tires. The extra clearance enhances comfort and grip.


ENGINEERED WITH BIANCHI CV SYSTEM

Oltre is engineered with the Bianchi CV System to cancel the road vibration. The result is in a smooth ride and a racer who can stay focused in his fastest, most efficient aerodynamic position for longer.

Bianchi CV system cancels 80% of road vibration thanks to the use of a unique composite material integrated in Bianchi’s high-performance carbon frames and forks. The Bianchi CV vibration cancelling system combines viscoelastic material together with a special carbon fiber architecture to dissipate vibration.

Advantages for the rider are more control, less muscle fatigue and more energy.

TESTED IN EVERY RACE SITUATIONS
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated vibration cancelling system developed by Bianchi for cycling and proven in the extreme conditions.





AERO INTEGRATION

In conjunction with Bianchi professional testers, we have designed and engineered a new Oltre XR3 carbon frame and fork – as an integrated system – to work specifically with the new disc brakes while maintaining the Oltre’s aerodynamic advantage.

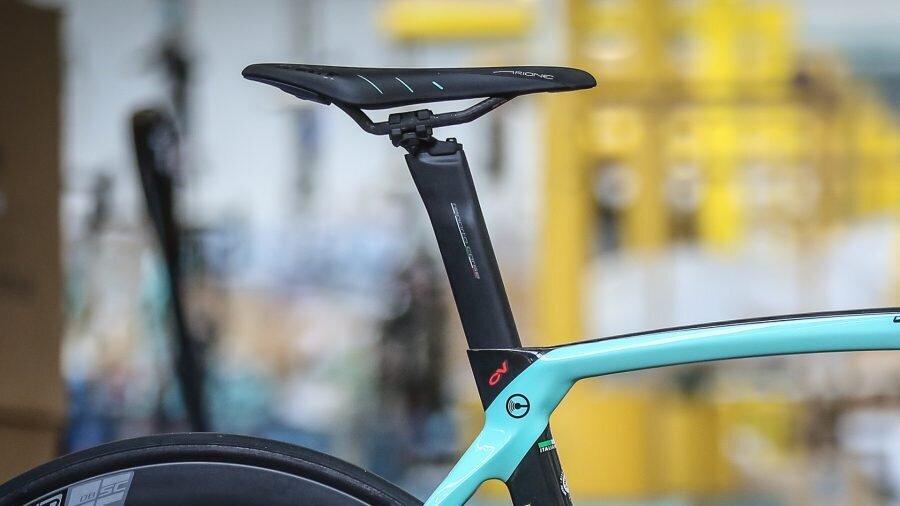

AERO SEATPOST

Aero seatpost with integrated look and adjustable head clamp offset 25mm or -10mm


  •

(647)

  • COLOR

    1Z - BLACK/CK16 CELESTE-GRAPHITE MATTE



  • FRAME

    OLTRE XR3 DISC CARBON W/BIANCHI CV, MECHANICAL/ELECTRONIC SHIFTIG COMPATIBLE, UTSS SS, HT WITH INTEGRATED FORK, CARBON DROPOUT, PRESSFIT 86,5X41MM BB, FLAT MOUNT CALIPER, THRU AXLE 12X142MM, SIZES 47-50-53-55-57-59-61CM



  • HEADSET

    FSA ORBIT C-40-ACB



  • REAR DERAILLEUR

    SHIMANO ULTEGRA RD-R8000 SS 11SP



  • CRANKSET

    SHIMANO ULTEGRA FC-R8000 50X34T, HOLLOWTECH II, CRANK LENGTH: 170MM-47/53CM, 172.5MM-55/59CM, 175MM-61CM



  • CHAIN

    SHIMANO ULTEGRA CN-HG701-11, 11SP



  • BRAKES

    SHIMANO BR-R8070



  • WHEELS

    FULCRUM RACING 418 DISC BRAKE



  • STEM

    REPARTO CORSE 3D FORGED ALLOY 6061, RISE +/-6°, 1.1/8", EXT: 90MM-47/50CM, 100MM-53CM, 110MM-55/57CM, 120-59CM, 130-61CM



  • GRIPS

    LA SPIRALE RIBBON CORK



  • SADDLE

    FI'ZI:K ANTARES R7, S ALLOY RAIL, 274X142MM



  • WATERBOTTLE

    BIANCHI LOLI 600ML

  • SIZES

    470 500 530 550 570 590 610

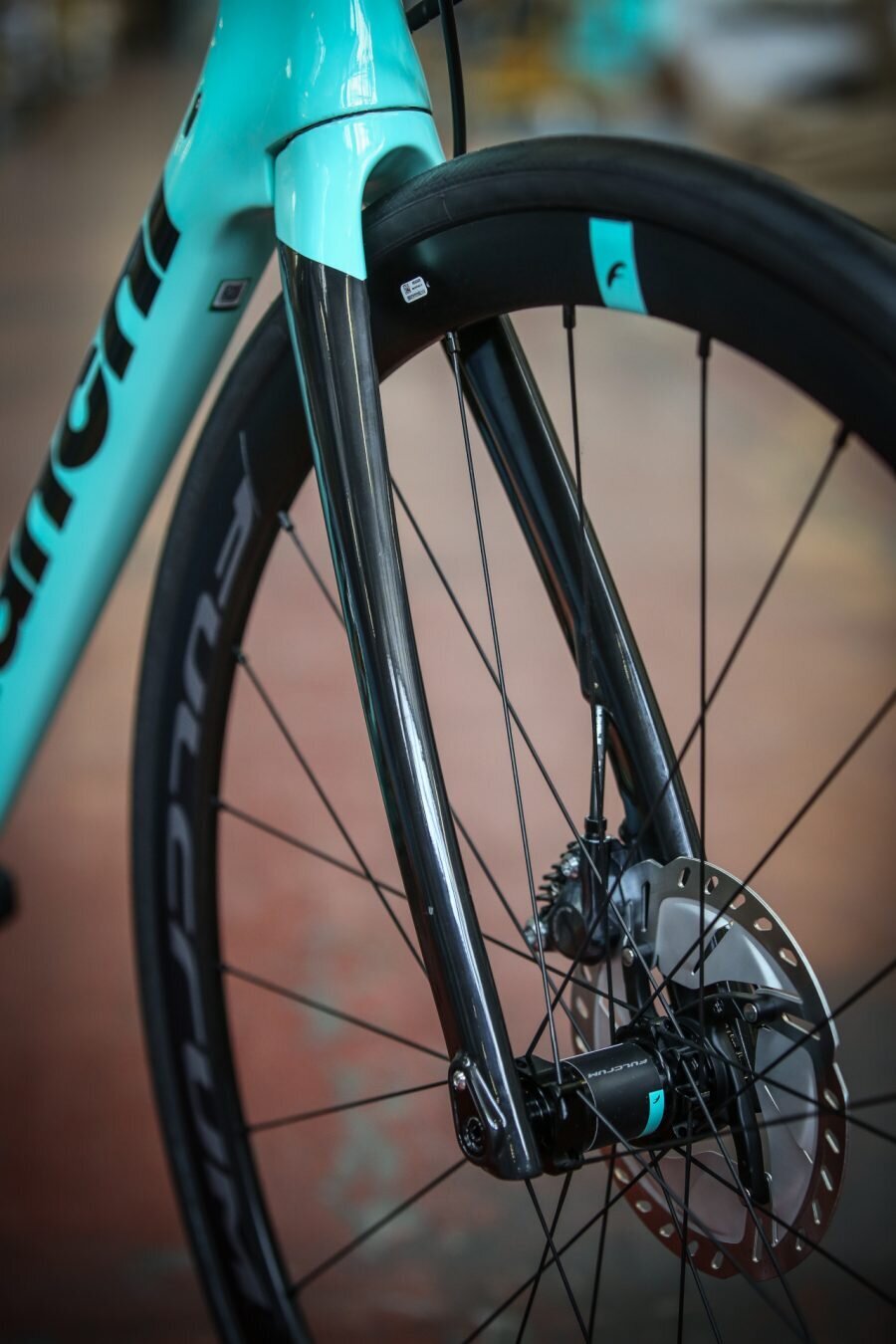

  • FORK

    BIANCHI FULL CARBON AERO DISC W/BIANCHI CV, 1.5"-1.1/8" INTEGRATED HEAD , FLAT MOUNT CALIPER, THRU AXLE 12X100MM



  • SHIFTERS

    SHIMANO ULTEGRA ST-R8020 2X11SP, HYDRAULIC DISC BRAKE, SHIMANO ULTEGRA ST-R8025 2X11SP, SMALLER LEVER SIZE FOR SIZES 47/53CM



  • FRONT DERAILLEUR

    SHIMANO ULTEGRA FD-R8000



  • BB

    SHIMANO SM-BB72-41B



  • SPROCKET

    SHIMANO ULTEGRA CS-R8000, 11-12-13-14-15-17-19-21-24-27-30T



  • BRAKE LEVERS

    INCLUDED W/SHIFTERS



  • TIRE

    VITTORIA RUBINO PRO G2.0 GRAPHENE 700X28



  • HANDLEBAR

    REPARTO CORSE AERO , ALLOY 6061 DIAM. 31,8MM, REACH 74MM, DROP 116MM, SIZE: 400MM-44/53CM, 420MM-55/59CM, 440MM-61CM



  • SEATPOST

    OLTRE FULL CARBON AERO; CLAMP WITH ALLOY HEAD ADJUSTABLE AND REVERSIBLE +/- 35MM, LENGTH: 250MM-47CM, 300MM-50/53CM, 350MM-55/59CM, 380MM-61CM, SETBACK: 25MM/-10MM



  • ROTOR

    SHIMANO SM-RT800 CENTER LOCK, DIAM. 160MM



  • WATERBOTTLE HANGER

    ELITE PARON RACE COMPOSIT

BIKE MEASUREMENTS


SKU 647
Brand Bianchi
