The ultimate one-piece bar/stem systems call for an elite level mount that positions your computer out-front and your light or camera is hidden underneath and aero. Rock-solid camera mount position improves video quality by removing camera shake.



Specifications:

  • For Integrated Handlebar (one piece) bar/stem
  • Pro-level mount with -7 degree articulation for custom computer positioning
  • Lifetime warranty. CNC Machined. Black Anodized
  • GARMIN approved replaceable computer insert protects computer tabs
  • Combo- Computer and GoPro style camera/light compatible
  • M5 hardware included. If a smaller bolt required, use an 8.4mm washer to ensure a secure fit.
  • Made in House. Boise, Idaho USA



Compatibility:

  • All Garmin cycling computers.
  • Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar).  **M4x20mm 0.7 thread pitch hardware not included.**
  • Click Here for our Canyon Fit Kit
  • Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.
  • NOT COMPATIBLE WITH: CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS, SCOTT SYNCROS INTEGRATED HANDLEBARS.

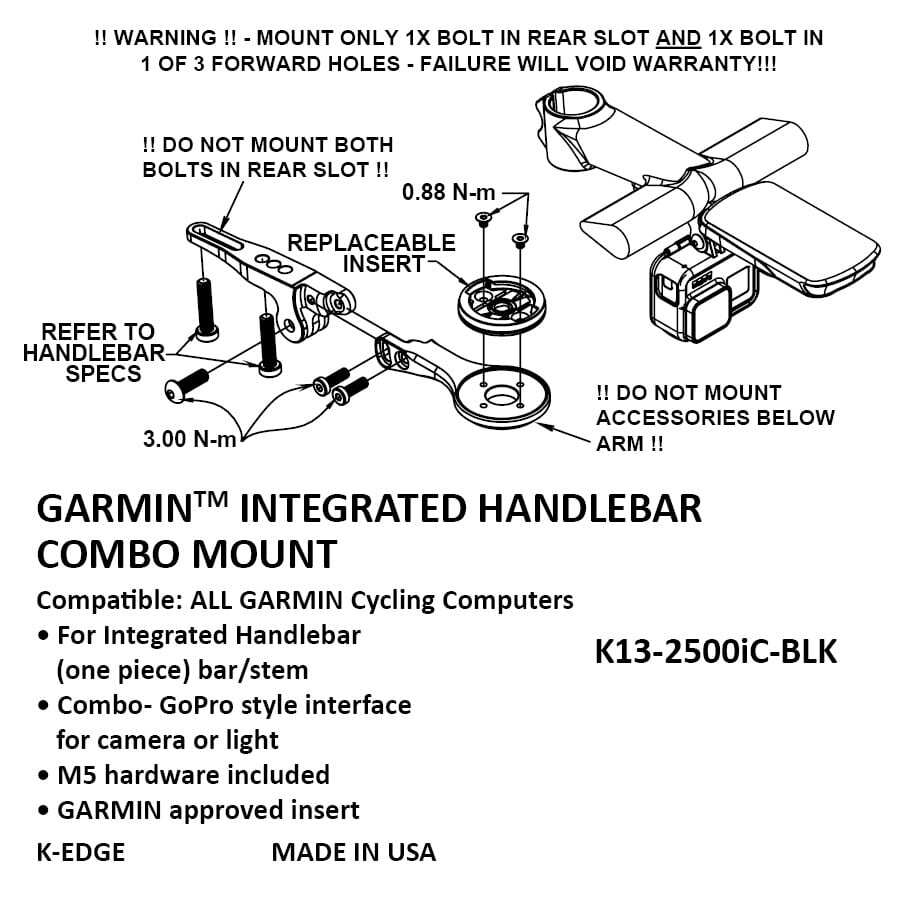

Installation:

  • All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
  • All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
  • Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.



Please contact us for questions or concerns. We highly suggest you follow the recommendations in the Garmin instructions, that recommend the use of the provided tether leash.

(K13-2500iC-BLK)

SKU K13-2500iC-BLK
Brand k-Edge
