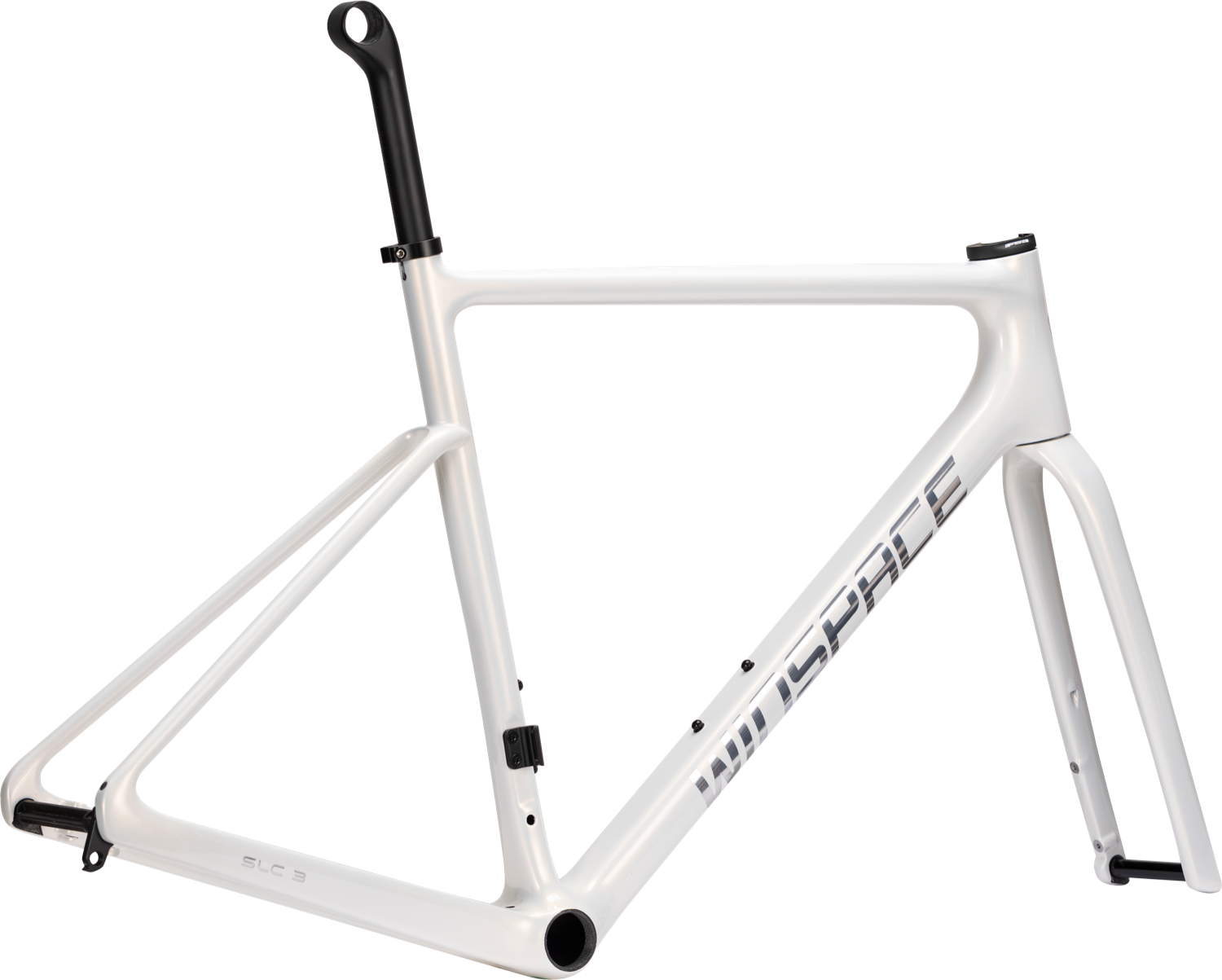

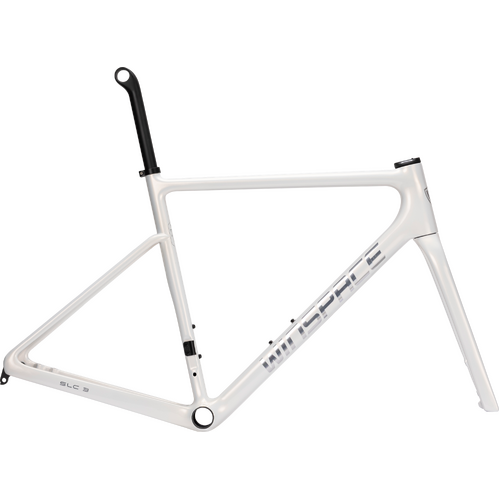

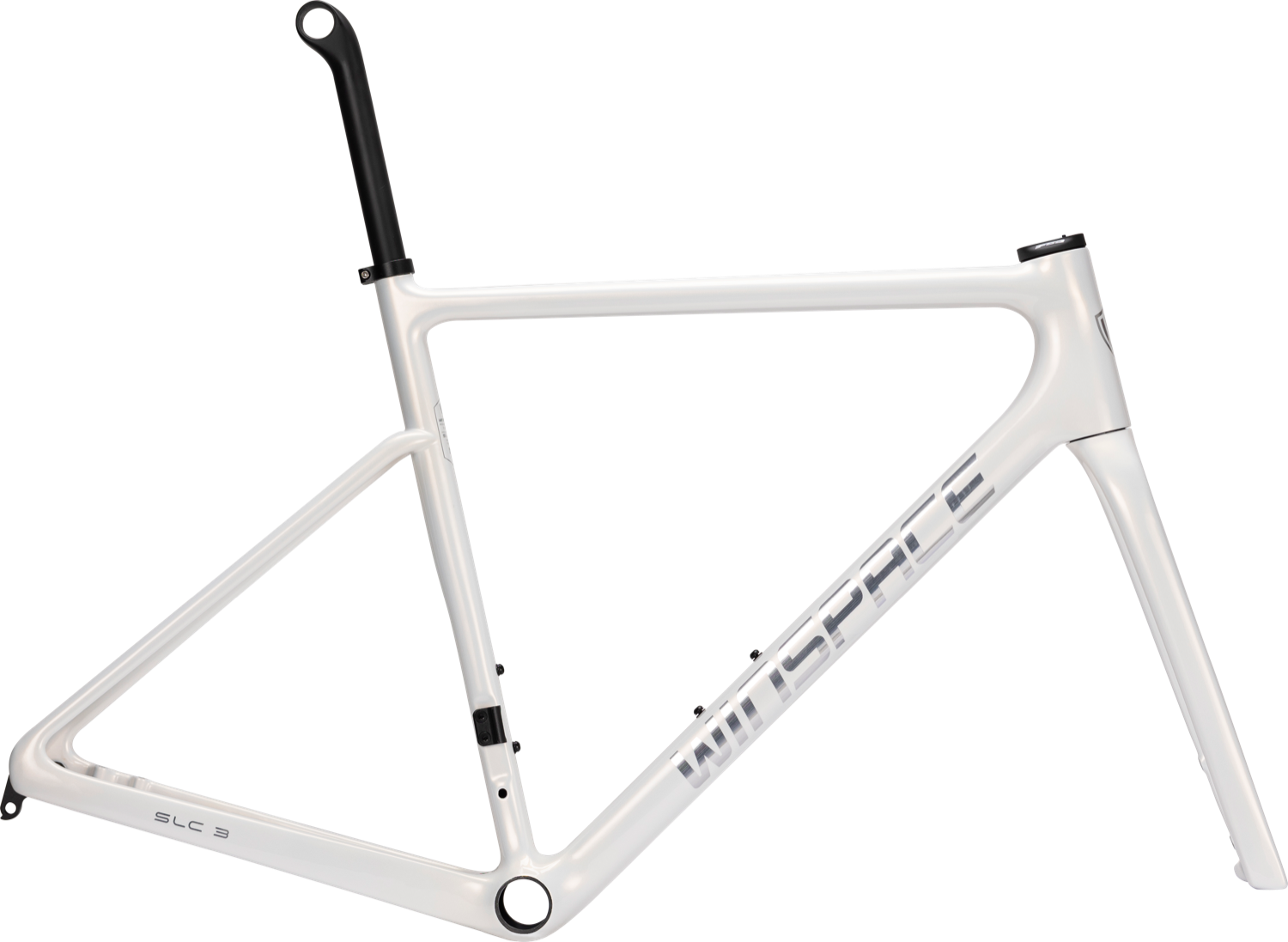

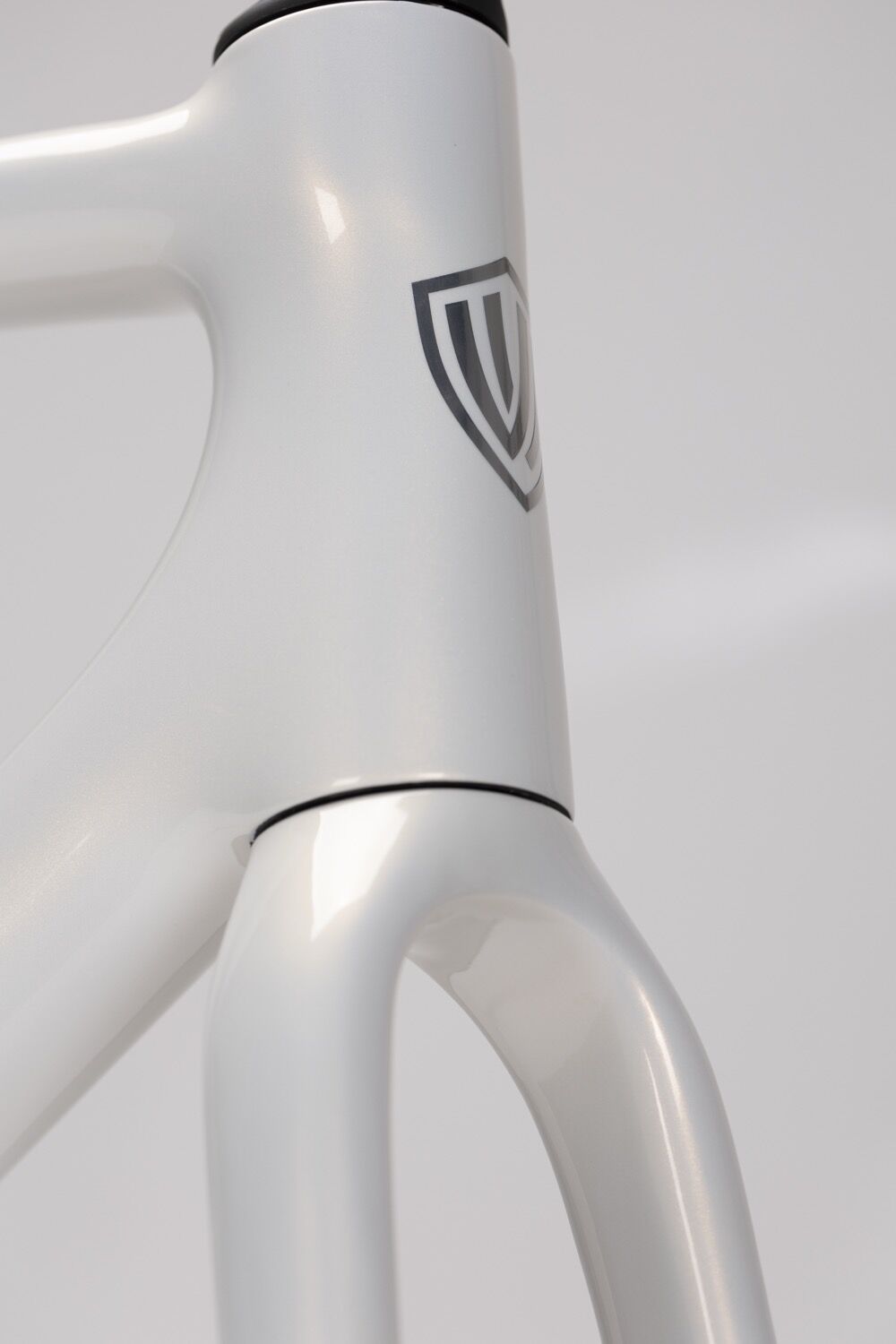

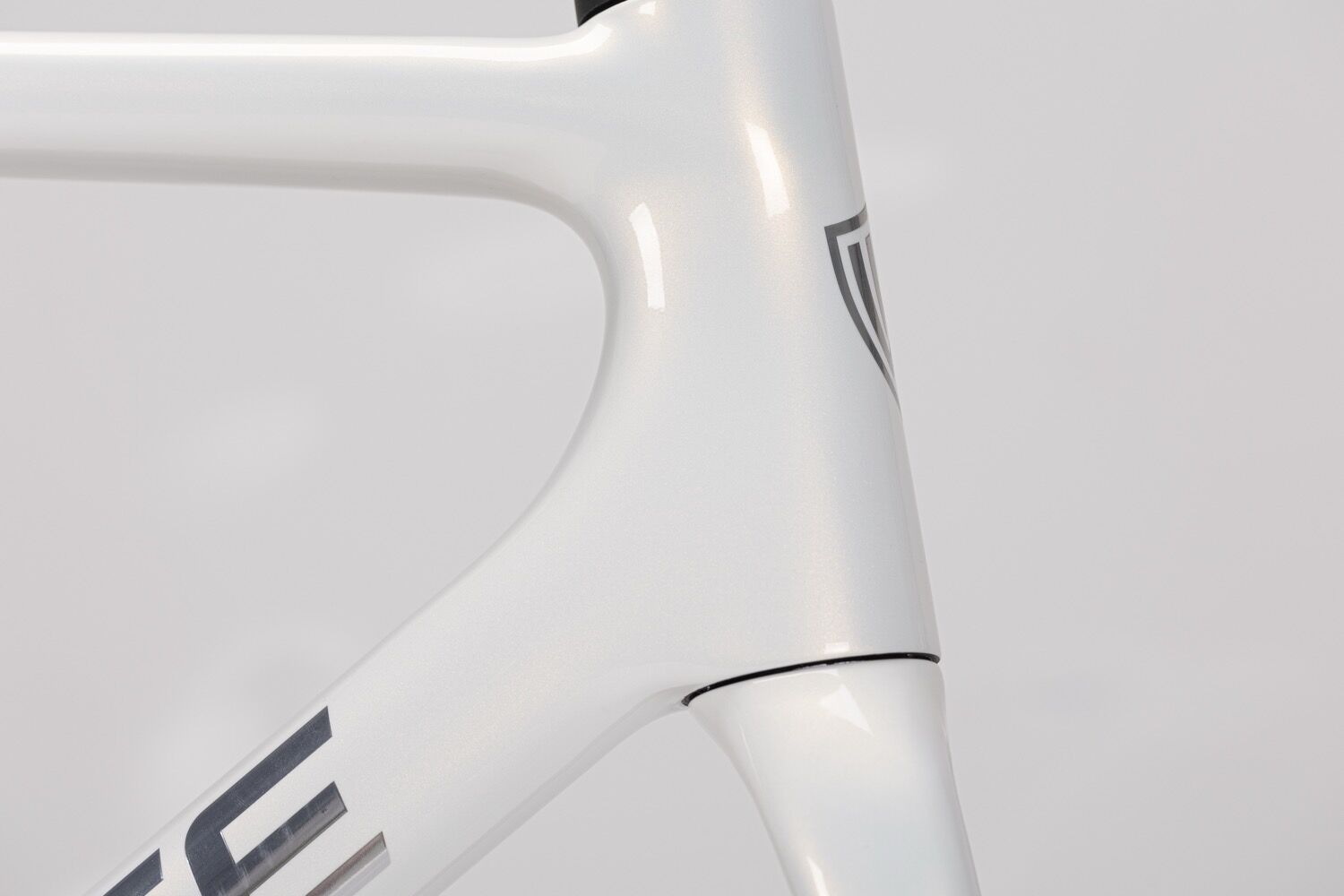

The Winspace SLC3 Disc Brake Frameset represents the pinnacle of lightweight, versatile road bike engineering. Weighing just 699g (M size, unpainted), the SLC3 is designed for riders who demand top-tier performance across climbing, sprinting, and endurance riding. Engineered with cutting-edge carbon fiber technology and precision design, this frameset balances stiffness, aerodynamics, and ride comfort. With features like increased bottom bracket stiffness, enhanced head tube rigidity, and an asymmetrical design for optimized power transfer, the SLC3 is a true all-terrain master.

This third-generation Super Light Carbon frameset is wind-tunnel tested for aerodynamic efficiency comparable to the fastest aero frames, ensuring you gain a competitive edge at speeds of 48km/h and beyond. Compatible with flat-mount disc brakes and up to 32mm tires, the SLC3 is ready to conquer any terrain with confidence and control.

Available in two stunning finishes: Polar White and UD Matte Black, the SLC3 combines aesthetics with functionality, making it the ultimate choice for performance-driven cyclists.



Features

  • Ultra-Lightweight Frame:
    • Crafted from Toray T1100, T1000, M46, and M65 carbon fibers, delivering exceptional strength and stiffness at just 699g (M size, unpainted).
  • Enhanced Stiffness for Power Transfer:

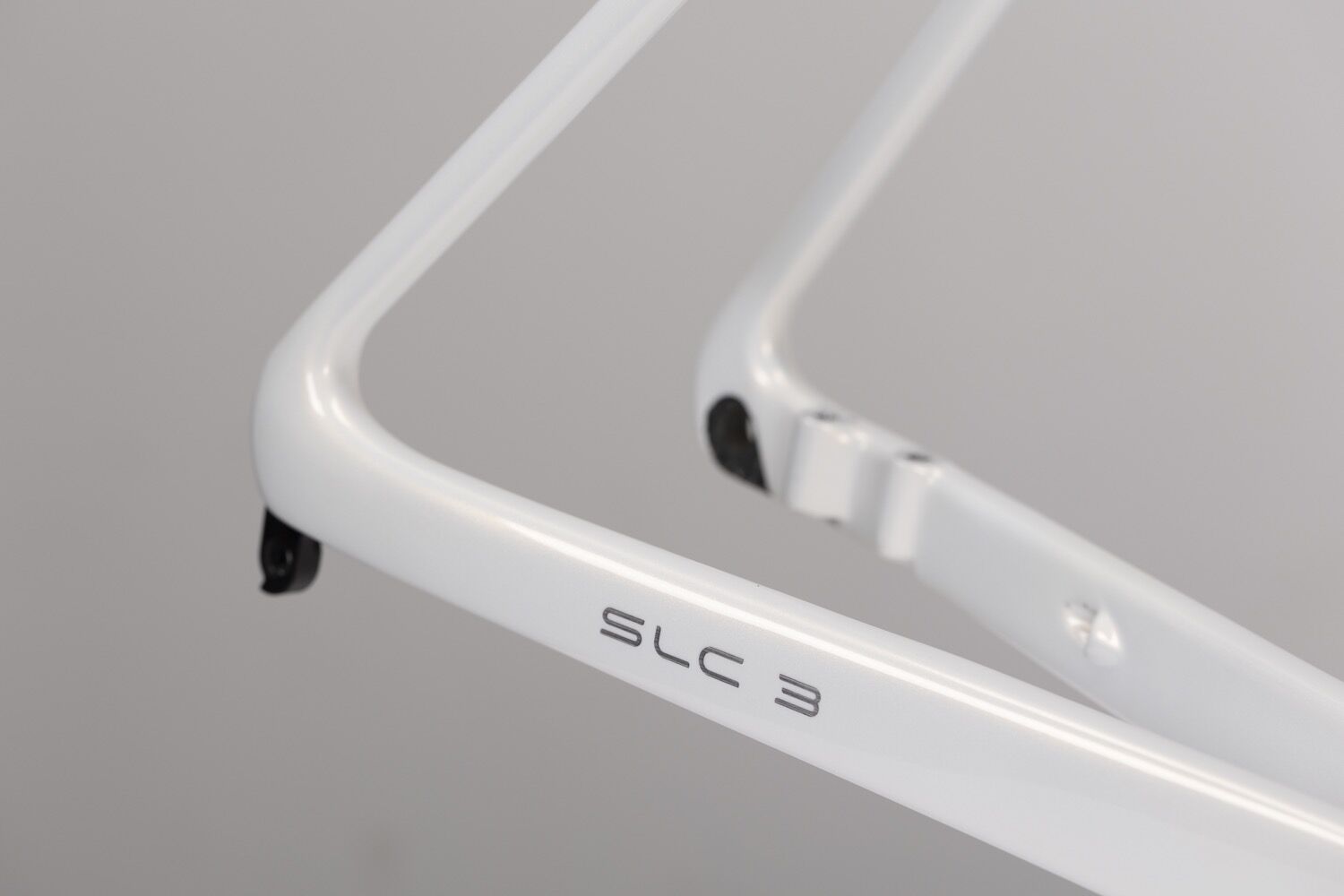

    • Asymmetrical chainstays and bottom bracket design for efficient power delivery to the drivetrain.
    • Bottom Bracket Stiffness: Improved to 72 N/mm, a 28.6% increase over previous models.

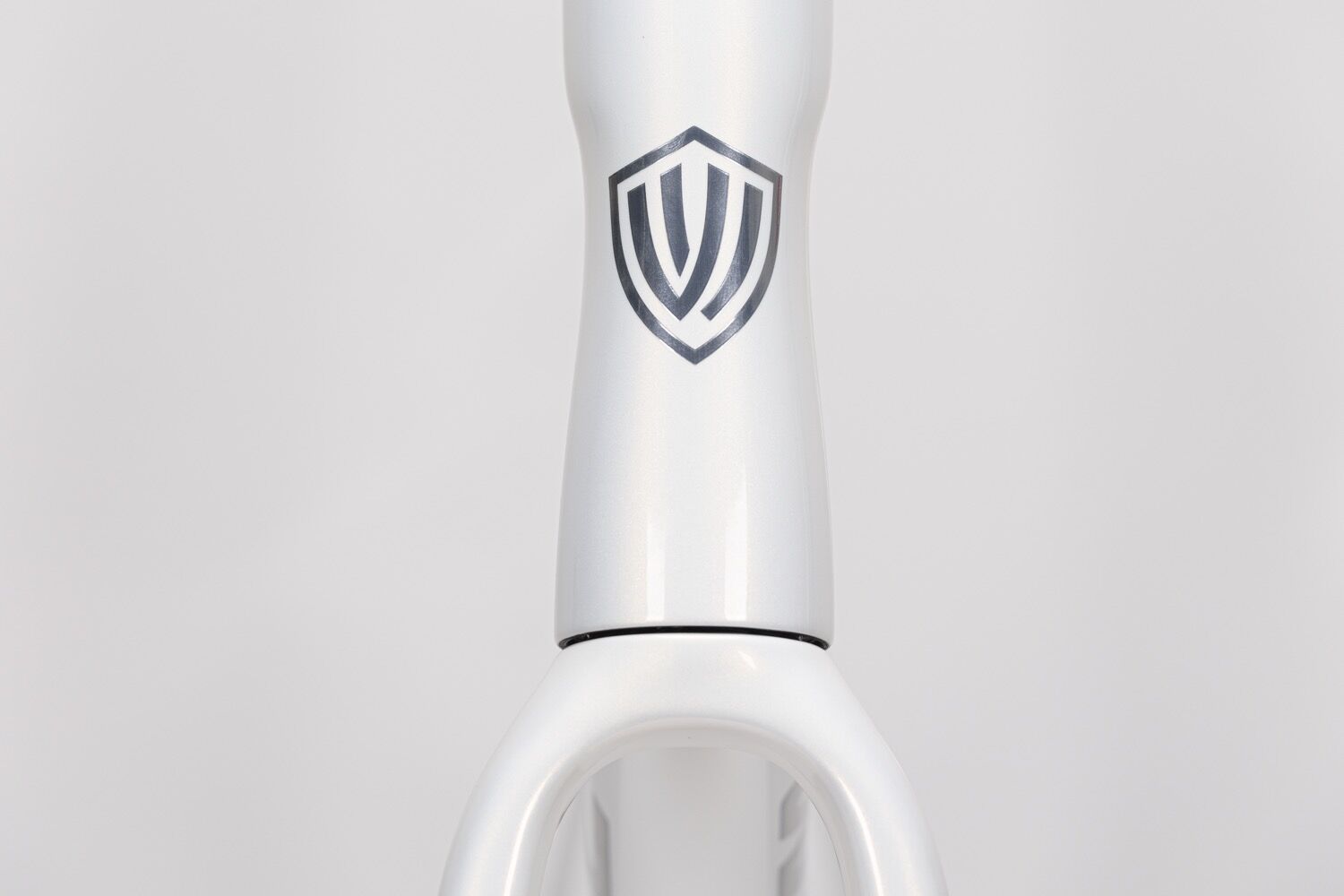

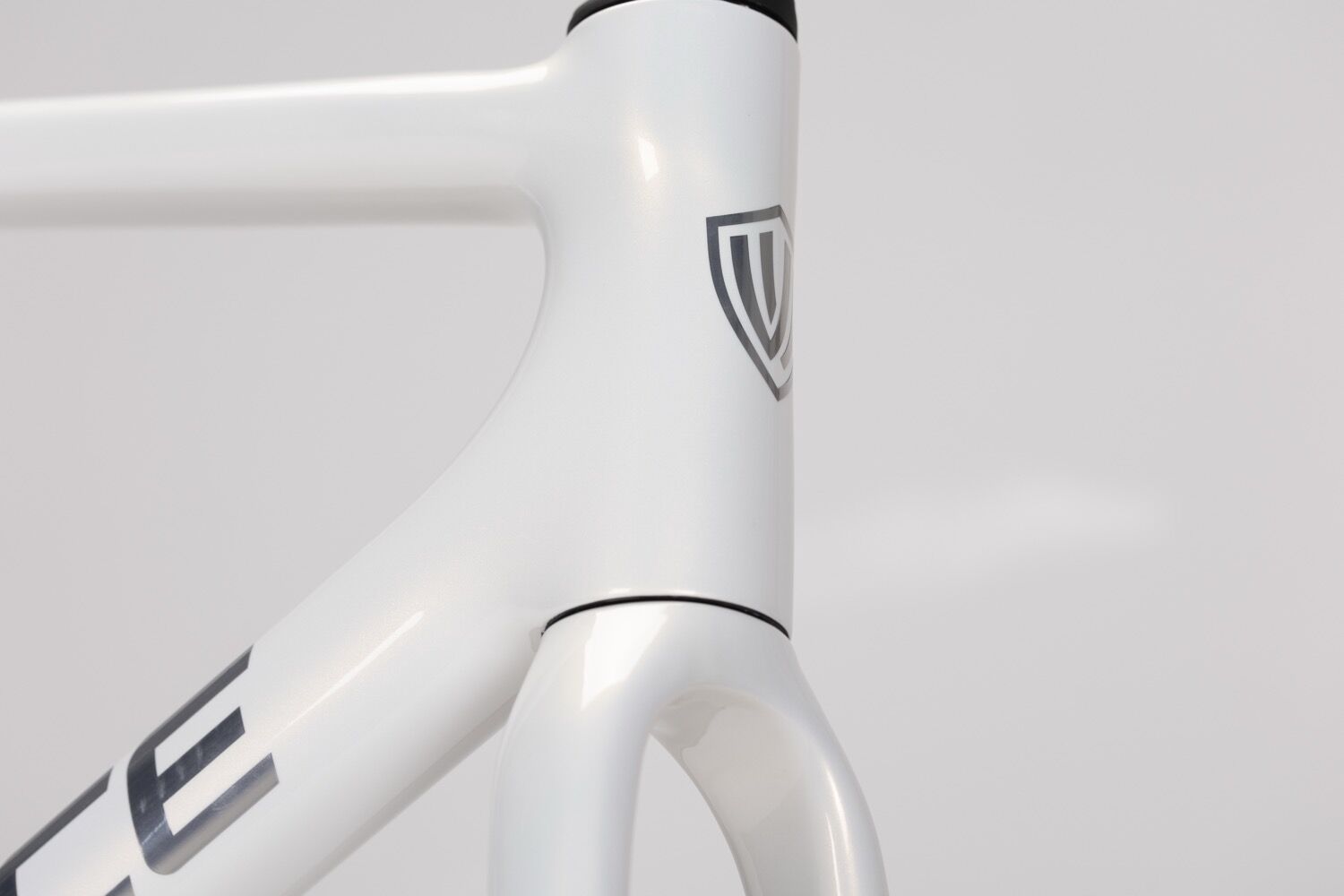

    • Head Tube Stiffness: Enhanced to 102 N/mm for precise steering and handling.
  • Aerodynamic Refinements:
    • Designed for wind tunnel efficiency, achieving aerodynamics comparable to the Winspace T1550 at high speeds.
    • Features an Aero Tail for optimized airflow and reduced drag.
  • One-Piece Molding Technology:
    • Frame constructed without joints, reducing weight while maintaining consistent strength and performance.
  • Disc Brake Compatibility:
    • Flat mount disc brakes provide powerful and reliable stopping performance on any terrain.
  • Wide Tire Clearance:
    • Accommodates tires up to 700x32mm, offering versatility and comfort for diverse road conditions.
  • All-Round Versatility:
    • Suitable for endurance riding, sprinting, climbing, and descending with confidence.
  • Internal Cable Routing:
    • Clean, aero-optimized routing compatible with Mechanical, Di2, Campagnolo EPS, and SRAM eTap systems.



Specifications

Frame Weight 699g (M size, unpainted)
Material Toray T1100 + T1000 + M46 + M65 Carbon Fiber
Brake Compatibility Flat Mount Disc Brake
Tyre Clearance Max 700x32mm
Seatpost Diameter 27.2mm
Bottom Bracket BB86-86.5
Head Tube 1-1/2’’ to 1-1/2’’ (FSA ACR system)
Axle Standards 12mm Thru-Axles (F: 12x100mm, R: 12x142mm)
Cable Routing Internal, supports Mechanical/Di2/Campy EPS/eTap
Sizes XS, S, M, L, XL
Colors Available Polar White, UD Matte Black, Limited Edition Colours



In the Box

  • Winspace SLC3 Frameset
  • Frame (in selected size and color).

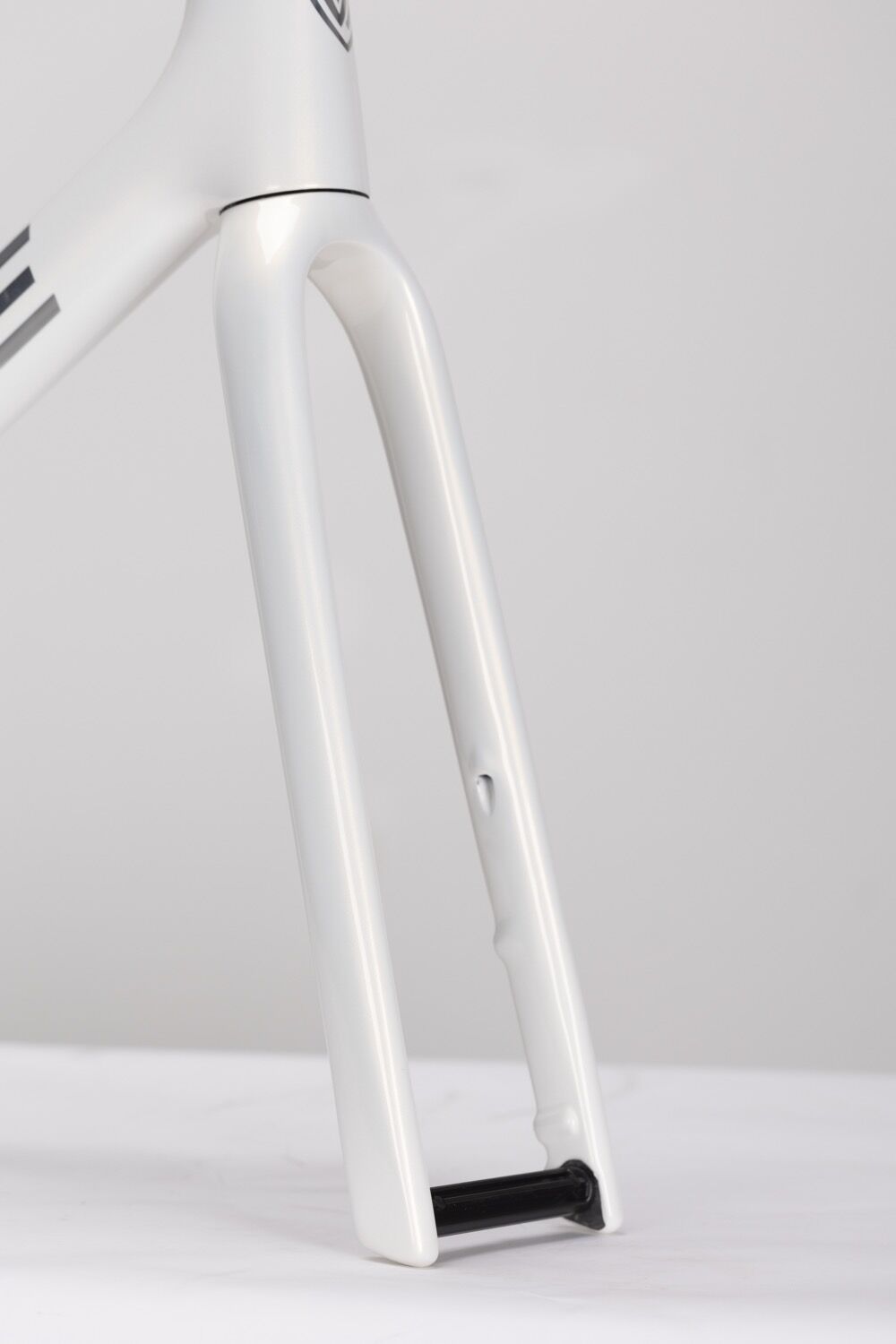

  • Fork with matching finish.
  • Integrated seatpost clamp.
  • Thru-axles (front and rear).
  • Headset compatible with FSA ACR system.
  • Additional Components:
  • User manual and warranty information.

(WFSLC3PW)

Features

  • Ultra-Lightweight Frame:
    • Crafted from Toray T1100, T1000, M46, and M65 carbon fibers, delivering exceptional strength and stiffness at just 699g (M size, unpainted).
  • Enhanced Stiffness for Power Transfer:
    • Asymmetrical chainstays and bottom bracket design for efficient power delivery to the drivetrain.
    • Bottom Bracket Stiffness: Improved to 72 N/mm, a 28.6% increase over previous models.
    • Head Tube Stiffness: Enhanced to 102 N/mm for precise steering and handling.
  • Aerodynamic Refinements:
    • Designed for wind tunnel efficiency, achieving aerodynamics comparable to the Winspace T1550 at high speeds.
    • Features an Aero Tail for optimized airflow and reduced drag.
  • One-Piece Molding Technology:
    • Frame constructed without joints, reducing weight while maintaining consistent strength and performance.
  • Disc Brake Compatibility:
    • Flat mount disc brakes provide powerful and reliable stopping performance on any terrain.
  • Wide Tire Clearance:
    • Accommodates tires up to 700x32mm, offering versatility and comfort for diverse road conditions.
  • All-Round Versatility:
    • Suitable for endurance riding, sprinting, climbing, and descending with confidence.
  • Internal Cable Routing:
    • Clean, aero-optimized routing compatible with Mechanical, Di2, Campagnolo EPS, and SRAM eTap systems.
Frame Weight 699g (M size, unpainted)
Material Toray T1100 + T1000 + M46 + M65 Carbon Fiber
Brake Compatibility Flat Mount Disc Brake
Tyre Clearance Max 700x32mm
Seatpost Diameter 27.2mm
Bottom Bracket BB86-86.5
Head Tube 1-1/2’’ to 1-1/2’’ (FSA ACR system)
Axle Standards 12mm Thru-Axles (F: 12x100mm, R: 12x142mm)
Cable Routing Internal, supports Mechanical/Di2/Campy EPS/eTap
Sizes XS, S, M, L, XL
Colors Available Polar White, UD Matte Black, Limited Edition Colours



In the Box

  • Winspace SLC3 Frameset
  • Frame (in selected size and color).
  • Fork with matching finish.
  • Integrated seatpost clamp.
  • Thru-axles (front and rear).
  • Headset compatible with FSA ACR system.
  • Additional Components:
  • User manual and warranty information.
SKU WFSLC3PW
Brand Winspace
