TOA
(verb) To Be Victorious

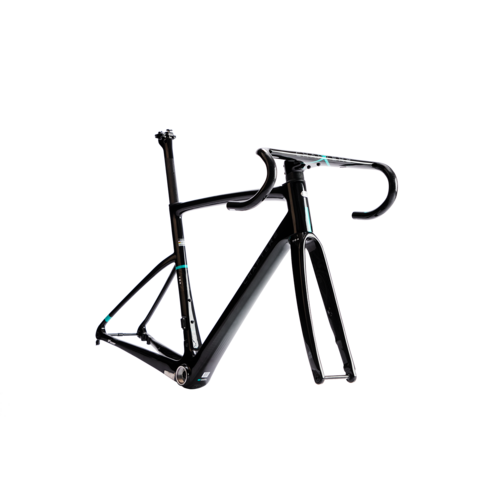

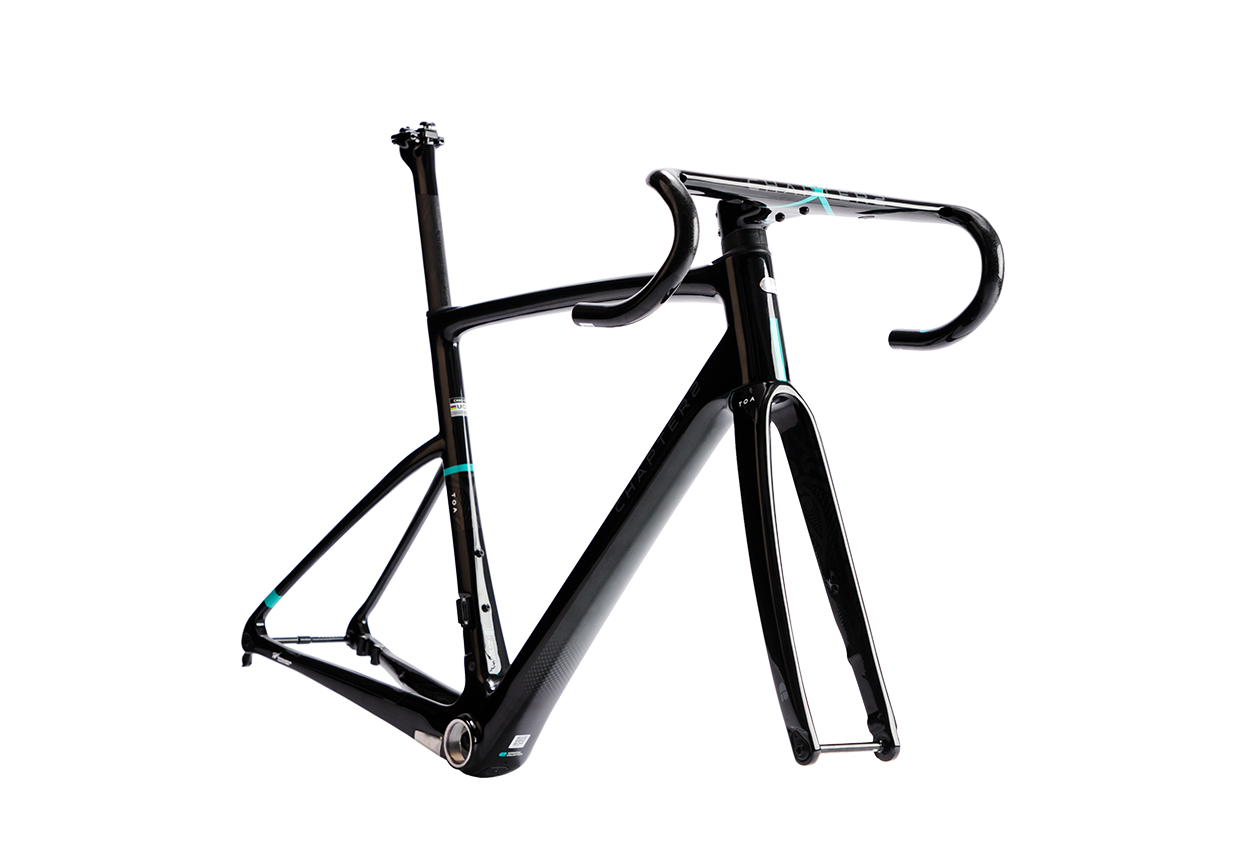

2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means “to be victorious, win” in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.
Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 8% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 34% over the TERE for that out of the saddle and power to the pedals moment. Features such as up to 32mm of tire clearance, vibration dampening seatstays and seatpost makes for a package that ticks all the right boxes. Further enhacements can be unlocked with our optional MANA Bar which completes the TOA platform.
MANDRELS
Each TOA Frame’s front triangle is moulded using a one-piece Latex Mandrel.
The use of Latex Mandrel for each size ensures that the pre-preg carbon wall thickness and resin flow is carefully controlled during production.
The use of High-Tensile Directional Toray Carbon in Bottom Bracket and Headtube increases front triangle torsional stiffness. The combination of both these processes improves the frames overall performance.
FULLY INTEGRATED
By integrating the cabling and hydraulic hoses the TOA presents a clean visual and aerodynamic profile. The fork crown blends with the headtube contributing to the seamless elegance.
When used with our MANA Bar the full aerodynamic benefits of the TOA are unlocked. Plus it’s practical with our system of Quick-Fit spacers permitting easy adjustment of bar height and quick disassembly should you wish to travel with your TOA.
(118082FS01)
All CHAPTER2 framesets (frame, forks, seatpost and other parts provided with frame at time of purchase) and MANA Bar and associated parts are covered under our global lifetime warranty program. Your warranty period begins from the time of purchase.
CHAPTER2 warrants that your frame, fork and/or seatpost and other parts supplied with the frame are free of any manufacturer’s defects and is only applicable to the original purchaser and may not be assigned.
This warranty only applies to CHAPTER2 products purchased from our website or from an authorised dealer or distributor.
This warranty commences from the date of purchase, is offered only to the original retail purchaser, and is not transferable.
Exceptions:
Consumable parts/accessories such as hangers, cable stops, seatclamps, saddle clamps etc. are not covered under this warranty.
The paint and decals on your CHAPTER2 frame, fork and/or seatpost and other CHAPTER2 branded parts/accessories are only covered for period of 2 years from time of purchase.
The warranty excludes damage whilst the frame, fork and/or seatpost is being used on a stationary trainer.
Damage caused by abuse, misuse, improper assembly, rental, improper or insufficient maintenance, accident, impact, corrosion, use of aggressive cleaners, use with non-compatible components, improper repairs and wear and tear are not covered under this warranty.
We reserve full rights to replace defective frames, forks and/or seatpost with closest available match or a relevant successor model at our discretion or else carry out repairs to them. CHAPTER2 will not warrant any product that have been previously covered or replaced by CHAPTER2. A warranty product, in all circumstances, does not prolong the warranty period and/or initialize a new warranty period. These benefits constitute the Limited Warranty’s entire scope.
In order to avoid any bogus/fraudulent warranty claims we have put in place a purchaser pays for return for inspection policy. After our engineers have inspected the claim and provided that the claim is approved, we will pay for the repaired/replaced parts’ shipping cost and also reimburse your shipping cost upon receipt of proof of payment to a reputable courier or Speedpost service. If the claim is rejected, we will return your frame part at our cost.
Your CHAPTER2 frames, handlebars and associated parts have been designed to EN ISO 4210:2014 standard. Any misuse of your road bike, such as carrying additional passengers/children or loads, carrying luggage and attaching parts not specifically designed for the frame will void your warranty.
The cost of replacing other parts and/or components that do not bear the CHAPTER2 and/or C2 logos that may have been damaged or affected by the manufacturer's defect is not covered by this warranty. Additionally, the cost of labour and material associated with the replacement of the CHAPTER2 frameset and associated parts are not covered under this warranty.
The foregoing limited warranty is exclusive and in lieu of all other warranties of quality and performance, written, oral, or implied. All other warranties, including any implied warranties of merchantability or fitness for a particular purpose are hereby disclaimed. In no event shall CHAPTER2 be liable for special, indirect, incidental, consequential, statutory or exemplary damages, whether in contract, tort, negligence, strict liability or otherwise including, without limitation, loss to property other than this product, loss of use of said product, or other property, or other economic losses. CHAPTER2 shall not be liable for contribution or indemnification, whatever the cause.
Some jurisdictions do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to particular customers. CHAPTER2’s obligations under any warranty shall be limited, to the greatest extent allowed by law, as provided in CHAPTER2 limited warranty. This limited warranty gives you specific legal rights; you may also have other rights, which vary from one jurisdiction to another.
All claims must be submitted directly to CHAPTER2 via email to info@chapter2.co.nz and must be accompanied with the following information:
1/ Copy of the original receipt showing purchaser’s name, purchase date and serial number.
2/ Photograph clearly showing the serial number under the bottom bracket.
3/ 3-4 photographs showing the defective area.
4/ Photo of whole bike left and right side.
The above is minimum requirement. To ensure a quick resolution of any warranty claim, make sure you provide the requested information and please use a proper camera under good lighting conditions with high resolution
Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.
Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
The TOA is available in our timeless Essential Collection for those who want a sleek and technical aesthetic. However, if standing out in the crowd is your demeanour, the TOA is also available in our exclusive Limited Edition colours for that much-coveted design statement that is sure to turn heads.
FRAME SPECS
Carbon: 100% Made in Japan by Toray®
Frame Sizes (5): XS, S, M, L & XL
Fork Rakes (2): XS, S (53mm offset) and M, L, XL (43mm offset)
Frame Weight: 1105g (Disc) Size M +/- 3%
Fork Weight: 425g (Disc) Uncut +/- 3%
Seatpost Weight: 135g Uncut +/- 3%
Handlebar/Stem (MANA): 395g (100-420mm) +/- 3%
Headset: 1.5” C2 Integrated System
COMPATIBILITY
Gear Shifting Type: Mechanical & Electronic Shifting
Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
Tire Clearance: 30mm (ISO) & 32mm Practical
Brake Type: Disc Only
Bottom Bracket: Internal T47
Thru-Axle: Flat Mount FR 12x100mm, RR 12x142mm E-Thru M12x1.5mm
ACCREDITATION
Safety Standard: EN ISO 4210:2014
UCI Accreditation: UCI Approved
TORQUE SPECS
Saddle Rail: 6Nm
Integrated Seatclamp: 8-10Nm
Front Derailleur Hanger: 3-4Nm
Rear Derailleur Hanger: 2-3Nm
BB Cable Guide Cover: 1-2Nm
Water Bottle Cage Bolts: 2-3Nm
MANA: 6Nm
WHAT YOU GET
Frame
Fork
Headset
Seatpost
Thru-Axles
Quick-Fit Spacers
SKU | 118082FS01 |
Brand | Chapter2 |
