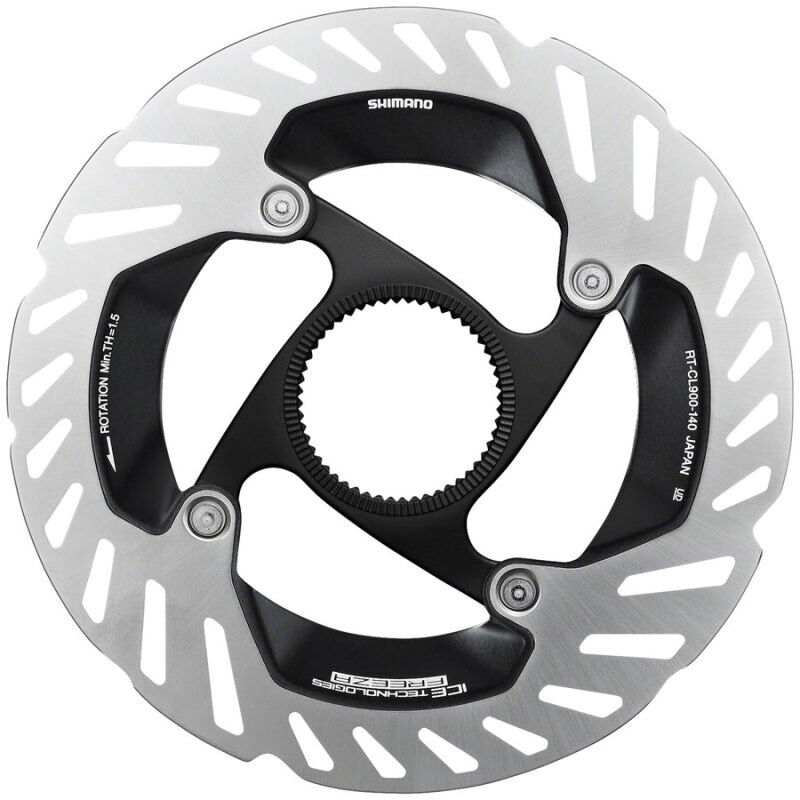

Shimano Dura-Ace RT-CL900 Centerlock Disc Brake Rotor - 140mm
Dura-Ace stopping power — Ice-Tech construction, heat dissipation paint, and the lightest rotor you'll put on a road bike.
The Shimano RT-CL900 is the Dura-Ace grade Ice-Tech Centerlock disc rotor — the top of Shimano's road rotor hierarchy. It takes the Ice-Tech aluminium-core sandwich and adds a dedicated heat dissipation paint coating to the carrier, pulling brake heat away even faster on sustained descents. The redesigned arm shape tightens up rotor resonance so braking is quieter than any previous Shimano road rotor, without any compromise to thermal performance or weight. At 96g (140mm) and 114g (160mm), it's also Shimano's lightest full-ice-tech road rotor.
Internal spline lock ring (IS). The RT-CL900 uses Shimano's Centerlock system with an internal spline lock ring — the standard Centerlock tool fits directly. Not the external serration version. Confirm your hub is Centerlock-compatible before ordering.
What makes this worth it
Ice-Tech + heat dissipation paint
The RT-CL900 adds a heat dissipation paint coating to the aluminium carrier, on top of the standard Ice-Tech sandwich construction. More surface area pulling heat away from the braking zone — measurably cooler under sustained load.
Quieter than any previous Shimano road rotor
The redesigned arm geometry reduces rotor resonance at the source — less vibration means less noise transferred through the caliper. Shimano specifically engineered the CL900 to be their quietest road rotor to date.
Shimano's lightest Ice-Tech road rotor
96g for 140mm, 114g for 160mm. The CL900 achieves these weights without sacrificing the Ice-Tech thermal core — a genuine Dura-Ace design priority, not a compromise.
Centerlock mounting
Internal spline Centerlock system — single lock ring secures the rotor precisely to the hub, faster to service than 6-bolt designs. Compatible with all Shimano and third-party Centerlock hubs.
Dura-Ace R9200 system match
Engineered as the OEM rotor for Shimano Dura-Ace R9200 hydraulic disc brakes. Perfect thermal and mechanical compatibility — the rotor Shimano tested the caliper against.
Two size options
140mm for lightweight front/rear on climbing or racing builds. 160mm for more modulation and power, or heavier riders on mixed terrain. Both sizes share the same Ice-Tech and heat-paint construction.
Specifications
| Brand | Shimano |
| Model | RT-CL900 |
| Grade | Dura-Ace |
| Technology | Ice-Tech + heat dissipation paint |
| Mounting | Centerlock (internal spline lock ring) |
| Available sizes | 140mm, 160mm |
| Weight (mfr claimed) | 96g (140mm) / 114g (160mm) |
| Compatible brakes | Shimano Dura-Ace R9200, Ultegra R8100, hydraulic disc |
| Rotor material | Stainless steel / aluminium carrier with heat dissipation paint |
(IRTCL900_)
