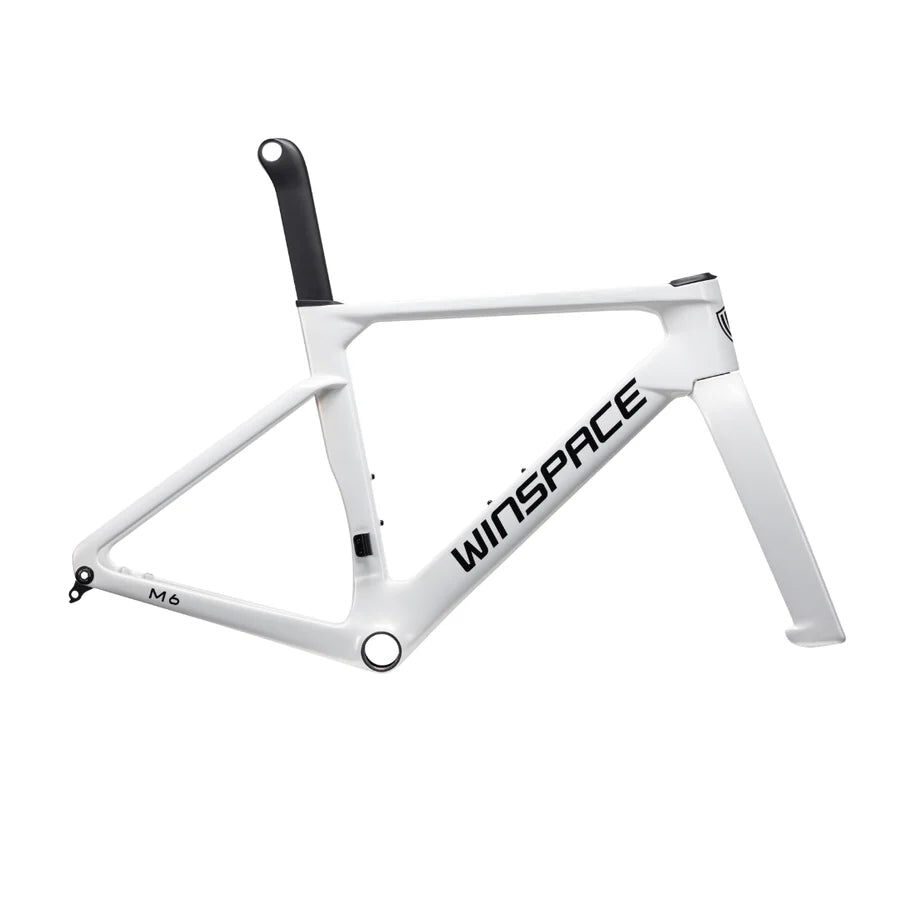

Winspace M6 Aero Carbon Frameset - Chameleon White, XS (430)
Four carbon grades. One aero frame. More speed for less.
The Winspace M6 is a full aero road frameset built around a quad-fibre carbon layup — T800, T700, M40, and ultra-high-modulus M60 — strategically placed to maximise stiffness where you're pushing power and retain compliance where the road is trying to rattle you apart. The frame weighs approximately 900g in size M. The carbon fork is included. At $2,499, this is proper aero engineering at a price that doesn't require a sponsor.
Where most race bikes force a trade-off between aero and liveable, the M6 refuses to. Fully integrated cable routing cleans up the front end aerodynamically. A T47 threaded bottom bracket eliminates press-fit creak. Clearance for 32mm tyres means you can run a 28mm race setup or a 32mm daily training tyre without changing bikes. Six sizes from XS to XXL mean the geometry actually fits, not just fits within 3cm.
Frameset includes frame, fork, headset, and seatpost. Bottom bracket and stem/bar not included — the T47 shell is compatible with Shimano, SRAM DUB, and Campagnolo with the correct T47 adaptor. Running Di2 or AXS? The fully integrated routing handles both — cables enter at the stem and disappear completely.
What makes this worth it
Quad-Fibre Carbon Layup
T800, T700, M40, and ultra-high-modulus M60 fibres are strategically layered throughout the frame — stiff where it needs to transfer power, compliant where it needs to absorb road. Most brands use two grades. Winspace uses four.
Sculpted Aero Profile
Every tube section is shaped to manage airflow — not just the down tube. The optimised fork and stays work together with the frame profile to reduce drag across all yaw angles, not just the straight-line ideal.
Fully Integrated Routing
Cables and hoses enter the frame at the stem and disappear completely — no external loops, no cable stops. Cleaner aerodynamics and a tidier cockpit, whether you're running Di2, AXS, or mechanical.
T47 Threaded Bottom Bracket
T47 gives you a wide shell for maximum stiffness at the pedalling interface — without the creak and service headaches of press-fit. Compatible with Shimano, SRAM DUB, and Campagnolo with the correct T47 adaptor.
32mm Tyre Clearance
Run a 28mm for race-day performance or step up to a 32mm for training comfort and wet-weather confidence. The M6 gives you the choice without compromise — real-world tyre widths, not just spec-sheet numbers.
Six Sizes, XS to XXL
Six frame sizes from 430mm to 560mm top tube length ensure genuine fit across the full range of road riders. Not a three-size range padded with seatpost adjustment — a real six-size lineup built for the Australian market.
Specifications
| Brand | Winspace |
| Model | M6 Aero Carbon Frameset |
| Frame Material | Toray T800 / T700 / M40 / M60 carbon fibre |
| Frame Weight | ~900g (size M) |
| Fork | Full carbon aero fork (included) |
| Bottom Bracket | T47 threaded |
| Tyre Clearance | Up to 32mm |
| Cable Routing | Fully integrated (internal) |
| Drivetrain Compatibility | Shimano Di2 / SRAM AXS / Mechanical |
| Brake Standard | Flat mount disc |
| Available Sizes | XS (430) / S (460) / M (480) / L (510) / XL (530) / XXL (560) |
| Includes | Frame + fork + headset |
| Colours Available | Frost White / Chameleon White / Mystic Purple / Carbon Black / Crimson Flame / Frost Black / Nusantara / Roubaix |
(WFM6ARCH)
Quad-Fibre Carbon Layup
T800, T700, M40, and ultra-high-modulus M60 fibres are strategically layered throughout the frame — stiff where it needs to transfer power, compliant where it needs to absorb road. Most brands use two grades. Winspace uses four.
Sculpted Aero Profile
Every tube section is shaped to manage airflow — not just the down tube. The optimised fork and stays work together with the frame profile to reduce drag across all yaw angles, not just the straight-line ideal.
Fully Integrated Routing
Cables and hoses enter the frame at the stem and disappear completely — no external loops, no cable stops. Cleaner aerodynamics and a tidier cockpit, whether you're running Di2, AXS, or mechanical.
T47 Threaded Bottom Bracket
T47 gives you a wide shell for maximum stiffness at the pedalling interface — without the creak and service headaches of press-fit. Compatible with Shimano, SRAM DUB, and Campagnolo with the correct T47 adaptor.
32mm Tyre Clearance
Run a 28mm for race-day performance or step up to a 32mm for training comfort and wet-weather confidence. The M6 gives you the choice without compromise — real-world tyre widths, not just spec-sheet numbers.
Six Sizes, XS to XXL
Six frame sizes from 430mm to 560mm top tube length ensure genuine fit across the full range of road riders. Not a three-size range padded with seatpost adjustment — a real six-size lineup built for the Australian market.
| Brand | Winspace |
| Model | M6 Aero Carbon Frameset |
| Frame Material | Toray T800 / T700 / M40 / M60 carbon fibre |
| Frame Weight | ~900g (size M) |
| Fork | Full carbon aero fork (included) |
| Bottom Bracket | T47 threaded |
| Tyre Clearance | Up to 32mm |
| Cable Routing | Fully integrated (internal) |
| Drivetrain Compatibility | Shimano Di2 / SRAM AXS / Mechanical |
| Brake Standard | Flat mount disc |
| Available Sizes | XS (430) / S (460) / M (480) / L (510) / XL (530) / XXL (560) |
| Includes | Frame + fork + headset + seatpost |
| Colours Available | Frost White / Chameleon White / Mystic Purple / Carbon Black / Crimson Flame / Frost Black / Nusantara / Roubaix |
| SKU | WFM6ARCH |
