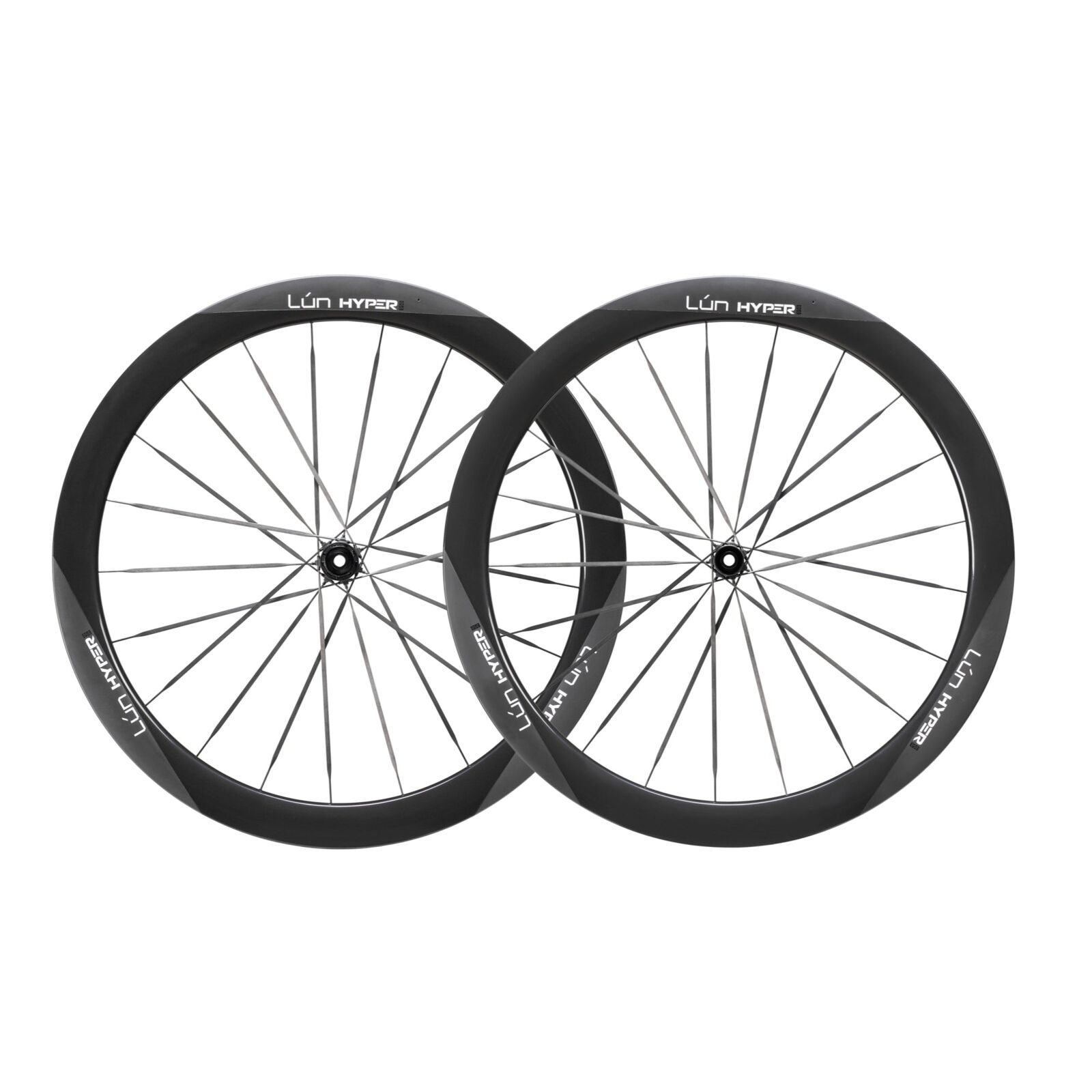

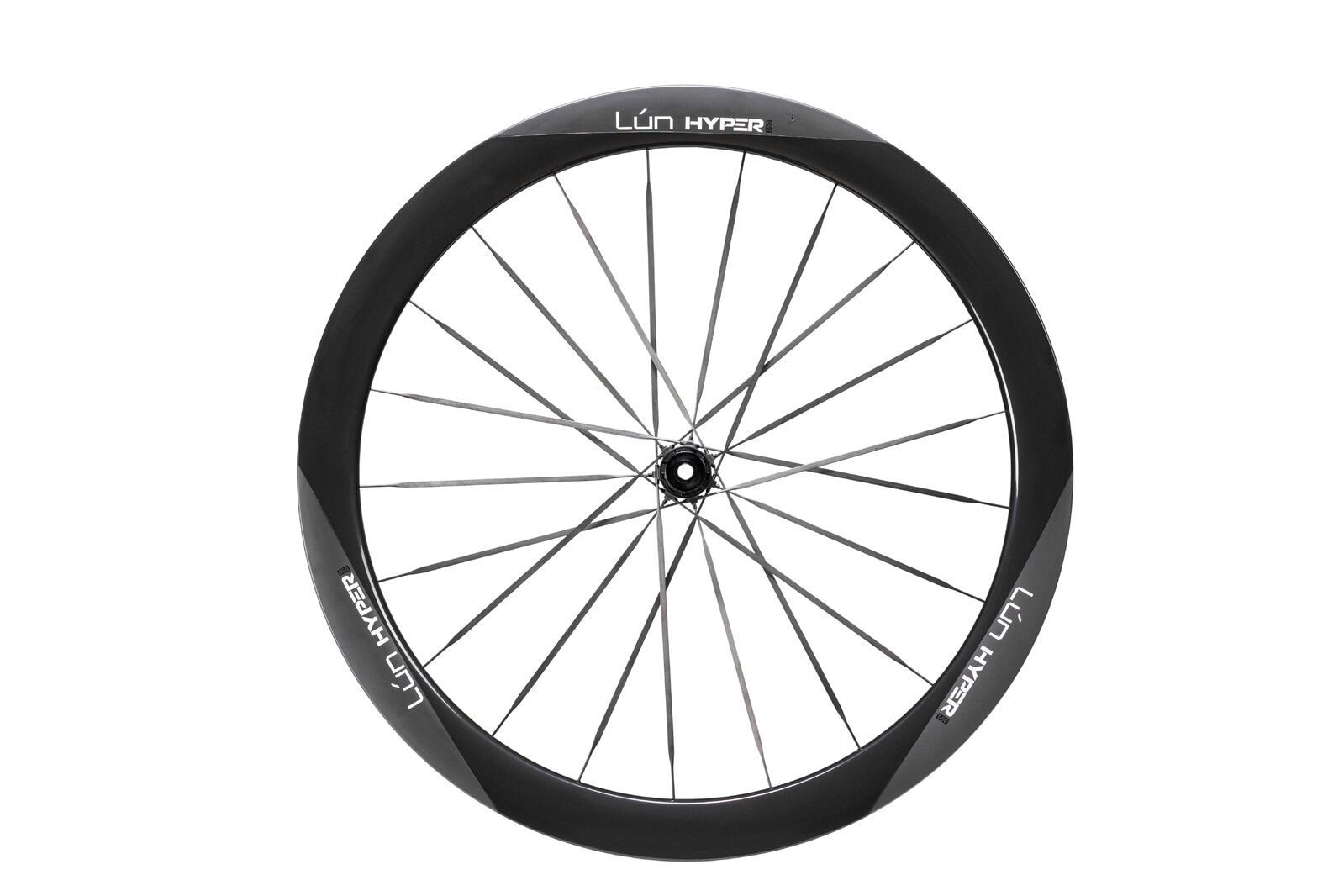

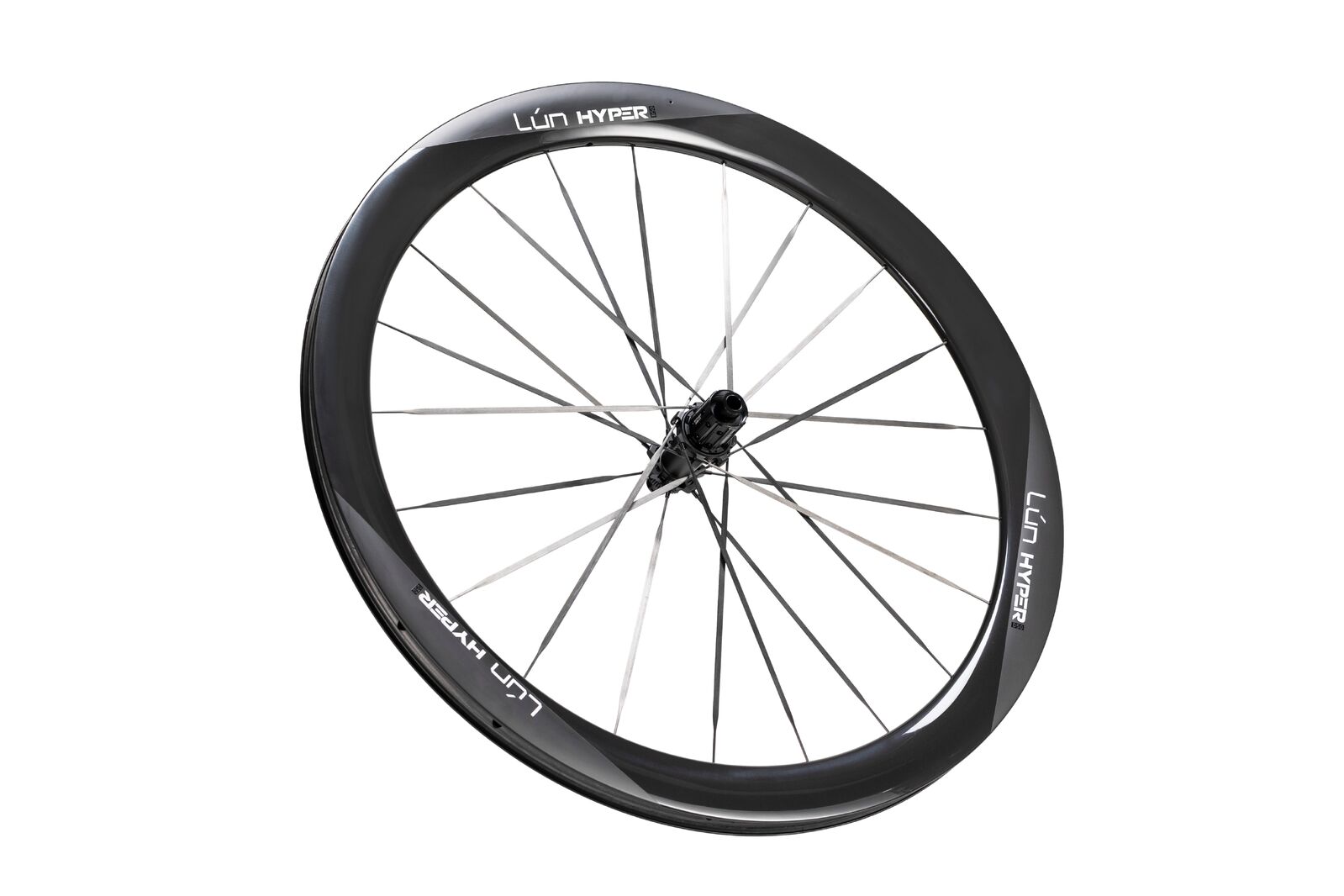

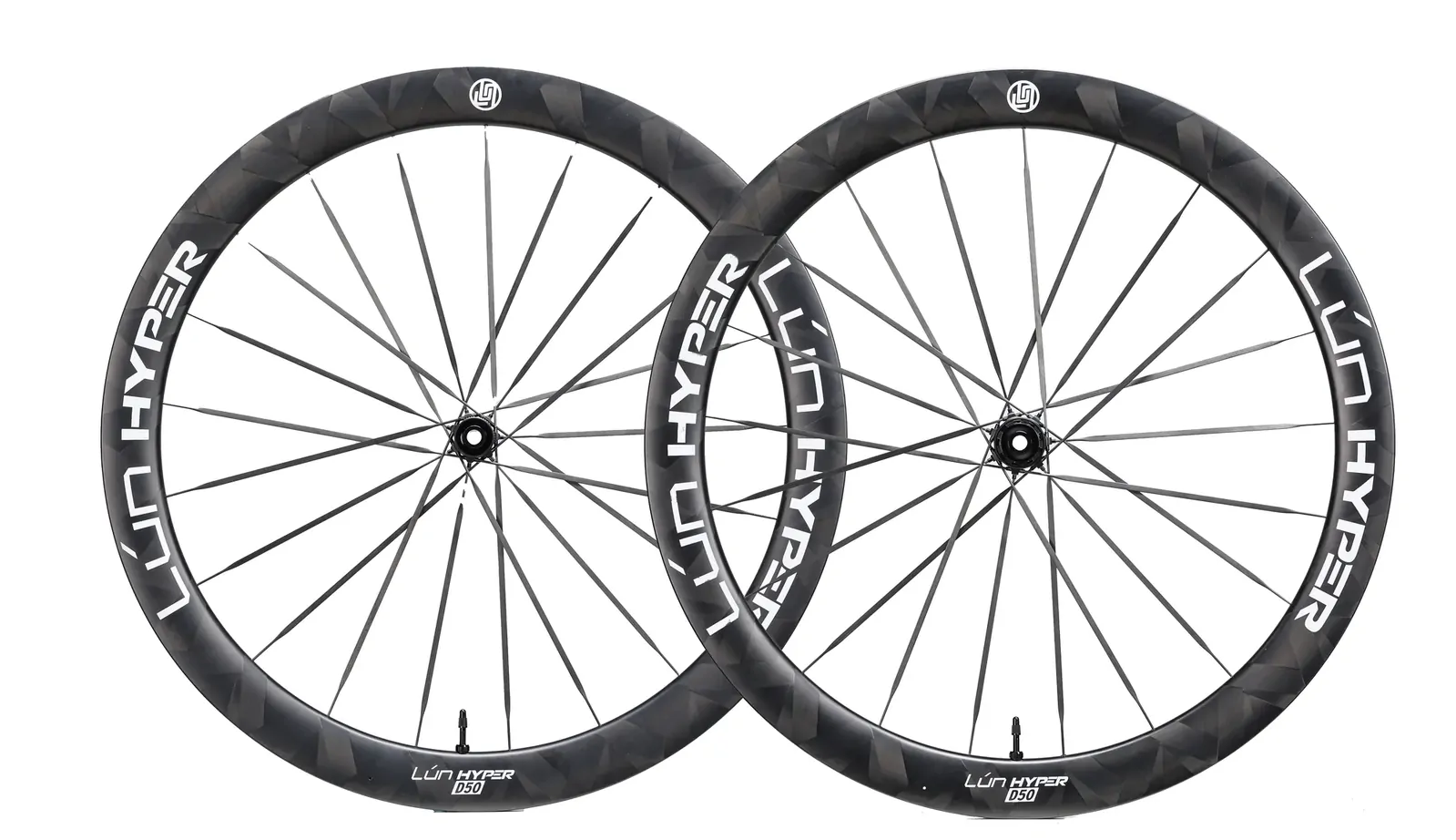

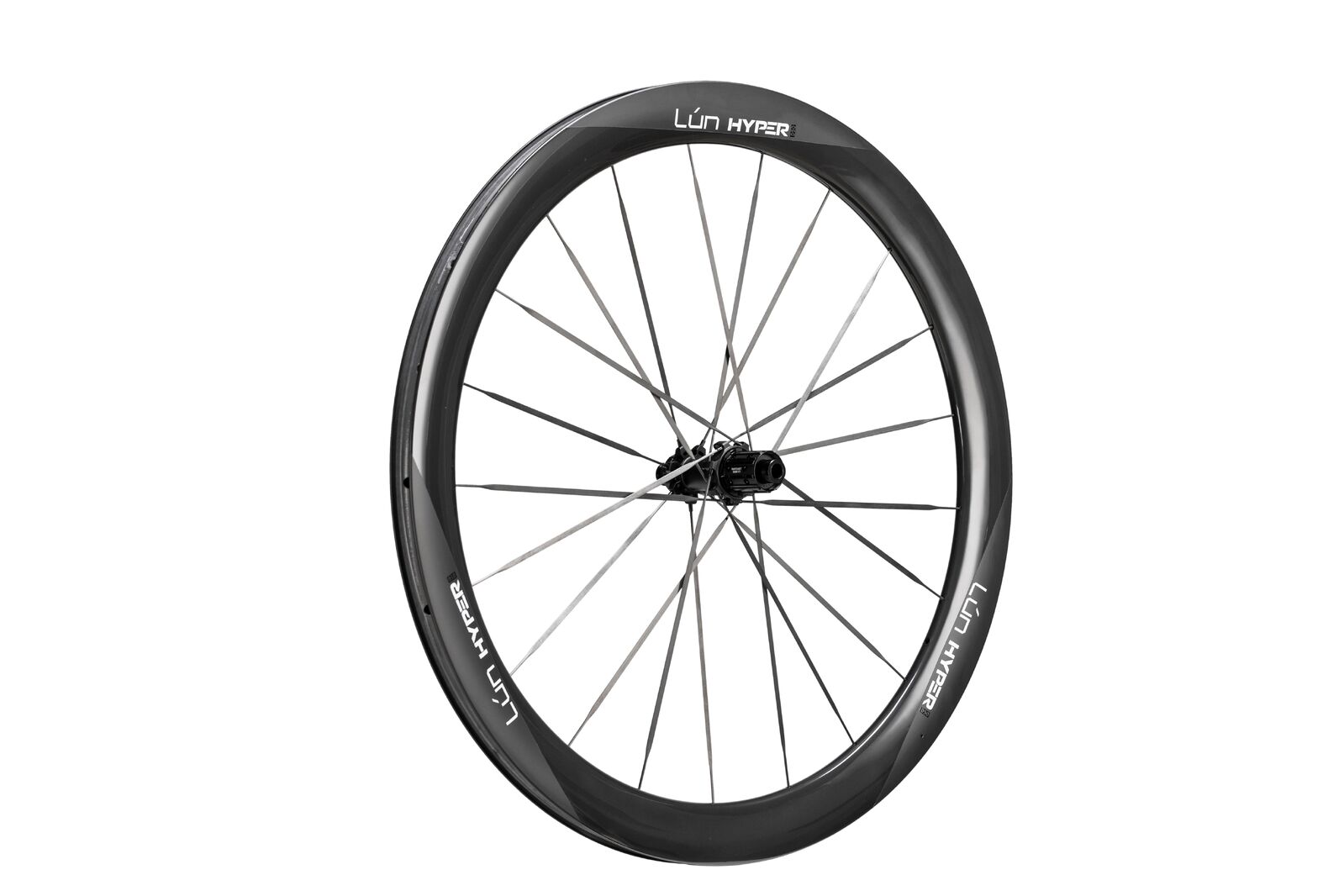

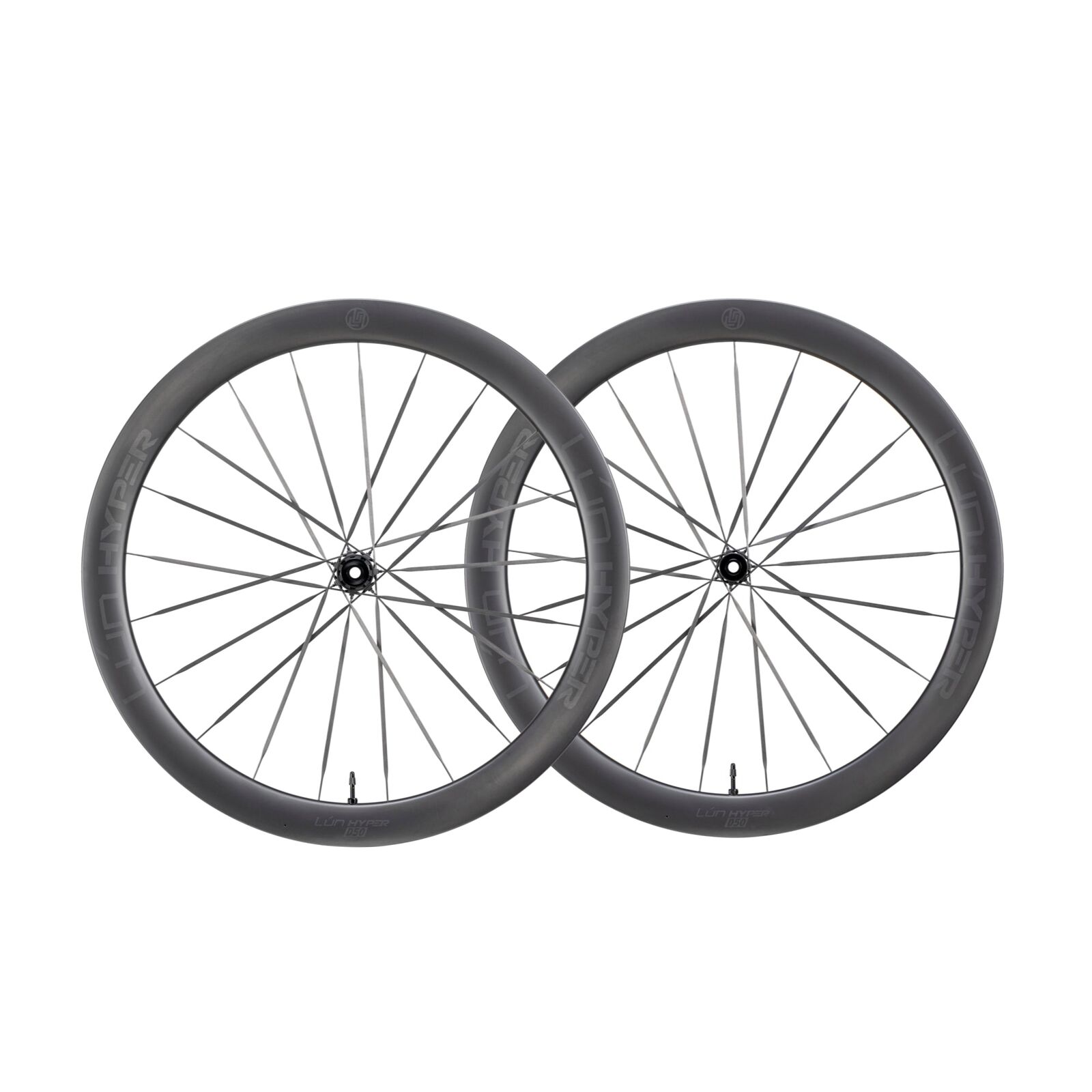

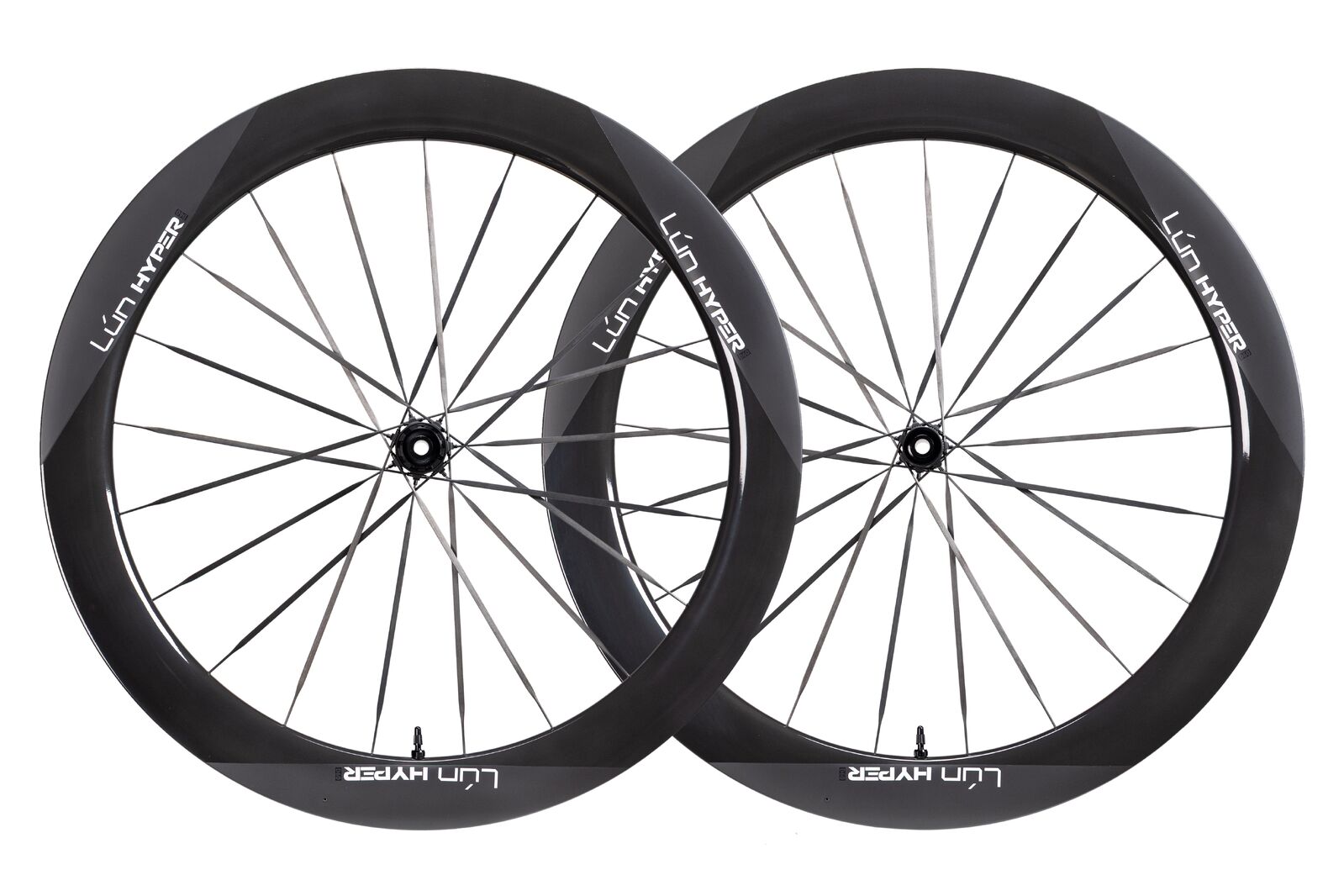

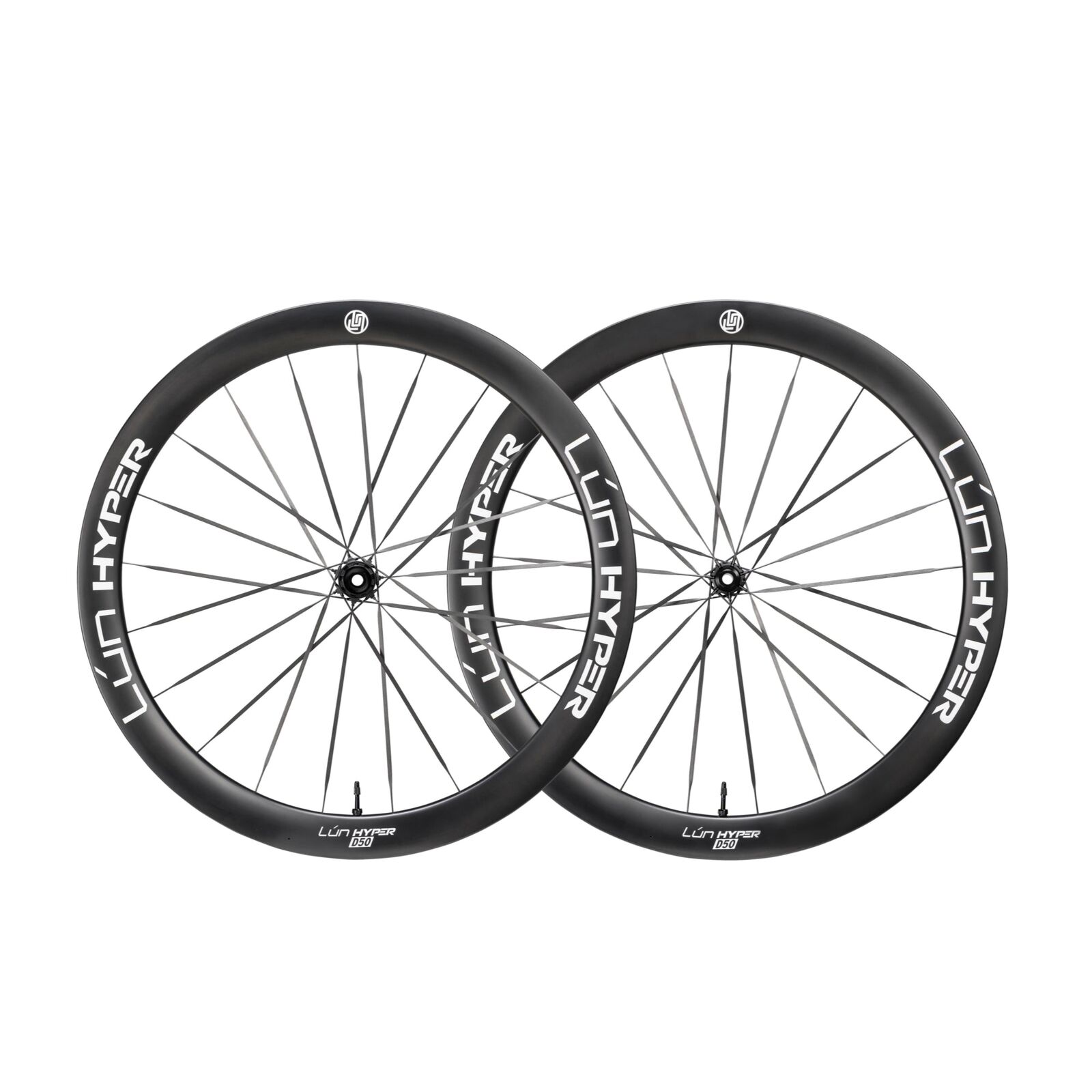

Winspace Lún Hyper 5 60mm Wheelset - UD Matt w/ Laser Decal, Shimano
Stronger. Stiffer. Unyielding.
The Lun Hyper 5 60mm is built for one thing: going as fast as possible on flat ground. At 1,350g the pair, with a 377 GPa carbon rim, hidden spoke nipple design, ceramic bearings, and a titanium ratchet hub at 298g per pair, the D60 is 71g lighter and 2W faster at 48 km/h than its predecessor. On a flat course in manageable conditions, it is the most aerodynamically efficient wheel in the Hyper 5 range.
Tour de France proven. The Hyper 5 made its grand tour debut and delivered a top-10 stage result. The same engineering. The same wheels. Available to you.
Why the 60mm?
The 60mm depth rewards confident handling and performs best when the terrain is flat and you can stay on the power. For time trials, flat stage races, triathlons, and exposed criteriums where aerodynamics are everything, the D60 is the wheel you reach for. Choose it for the right course and it will not disappoint.
Key Technologies

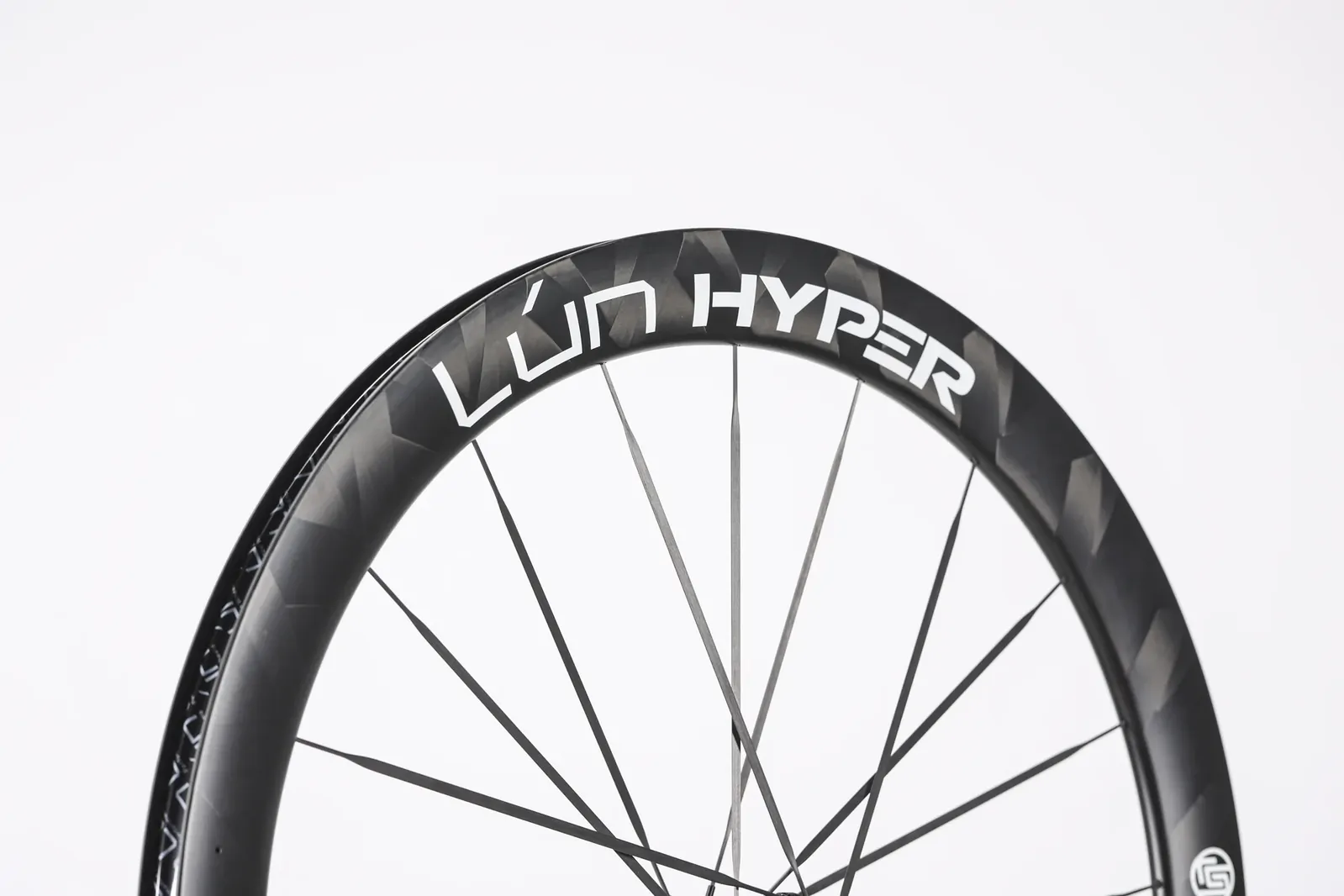

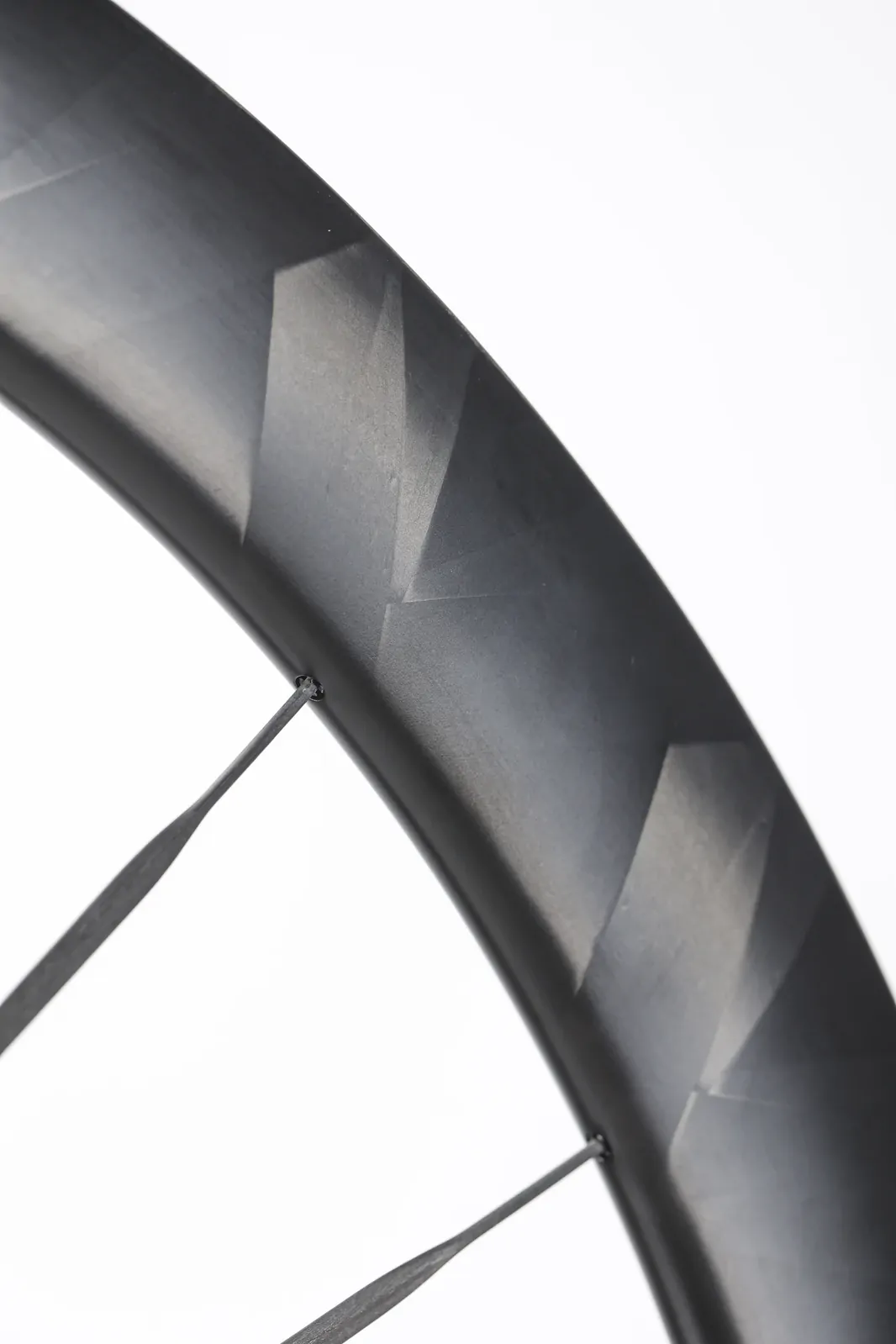

377 GPa Carbon Rim
64% stiffer than the Hyper 3. Less flex under sprinting loads, more precise steering feedback, and a rim that holds its line at speed.
Titanium Ratchet Hub (36T)
298g hubset — 59g lighter than the Hyper 3. Near-instant engagement with a modular design built for straightforward servicing.
Ceramic Bearings
Lower rolling resistance, longer service intervals, and smoother performance under load. Standard across the entire Hyper 5 range.
Hidden Carbon Spoke Nipples
A flush spoke design creates a cleaner rim profile, reducing turbulence and aerodynamic drag where it matters most.
Tubeless Ready
23mm internal / 30.5mm external rim width, optimised for 25–40mm tyres at up to 120 psi. Works with standard clincher setups too.

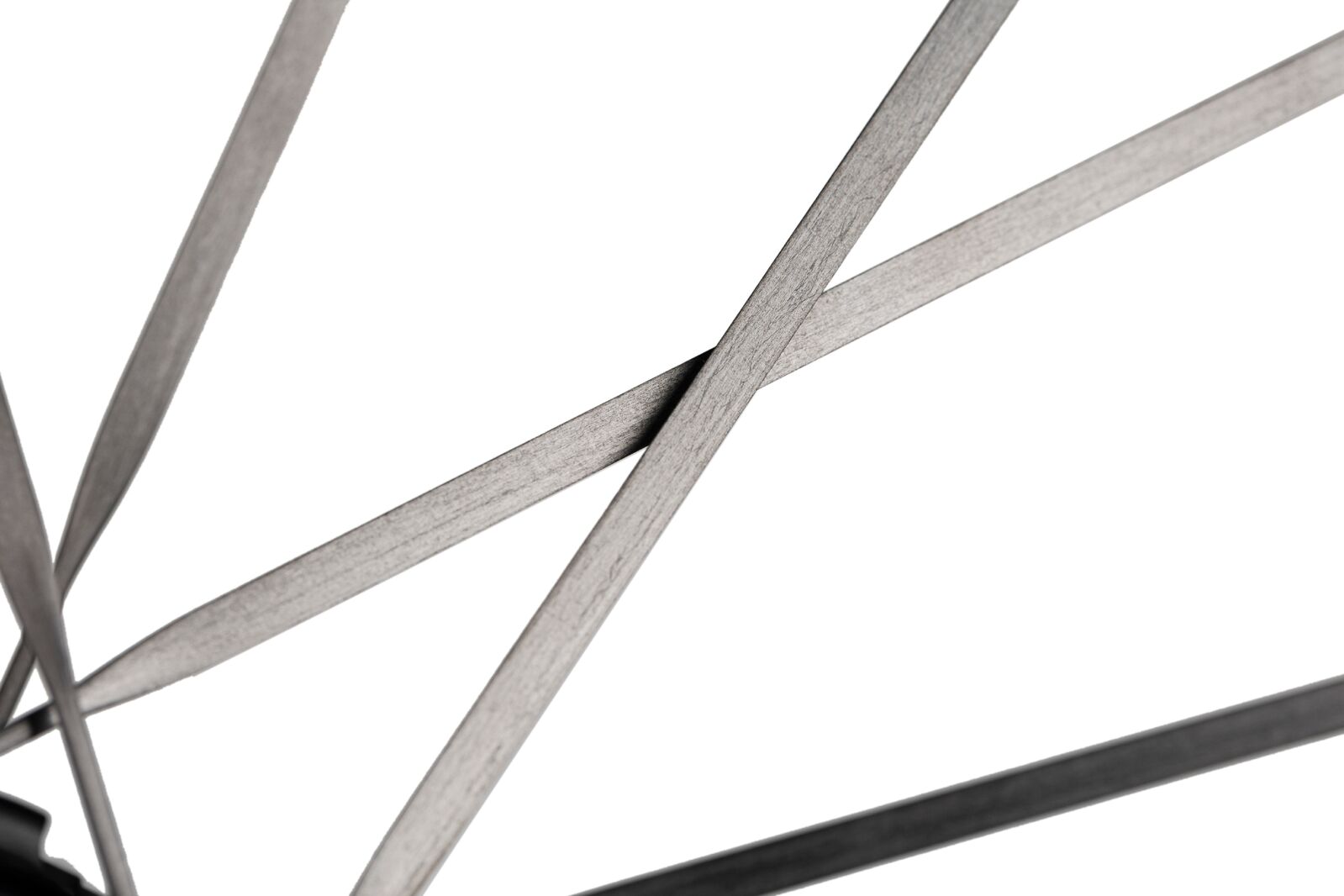

2:1 Carbon Spoke Lacing
21 spokes front and rear in a 2:1 pattern, balancing stiffness and weight distribution for maximum power transfer and durability.
Specifications
| Specification | Value |
|---|---|
| Weight (pair) | 1,350g |
| Rim Height | 60mm front and rear |
| Internal Rim Width | 23mm |
| External Rim Width | 30.5mm |
| Rim Material | Toray T700 + M40 Carbon Fibre |
| Spokes | 21 front / 21 rear, carbon fibre, 2:1 lacing |
| Bearings | Ceramic |
| Hub Structure | Titanium Ratchet (36T) |
| Hub Type Options | Shimano / SRAM XDR / Campagnolo / Campagnolo N3W |
| Tyre Compatibility | Tubeless / Clincher |
| Compatible Tyre Width | 25–40mm |
| Max Tyre Pressure | 120 psi |
| Brake Type | Disc Brake only |
Choose Your Depth
The Hyper 5 comes in three rim depths. Same hub, same spokes, same carbon technology — the depth changes the character of the ride.
Hub Type Compatibility
Select your hub type at checkout. Not sure? Get in touch and we’ll help you pick the right one.
| Hub Type | Compatible Drivetrains |
|---|---|
| Shimano | Shimano 11-speed, Shimano 12-speed, SRAM 11-speed |
| SRAM XDR | SRAM 12-speed AXS (RED, Force, Rival eTap) |
| Campagnolo | Campagnolo 10, 11, and 12-speed |
| Campagnolo N3W | Campagnolo Ekar and Super Record WRL |
Hyper 5 — From Us to the Tour de France
FAQ
Does the wheelset come with a freehub?
Yes — choose your hub type at checkout. Shimano covers most 11/12-speed setups, SRAM XDR for AXS groupsets, Campagnolo and N3W for Campy drivetrains. The wheelset ships complete with your selected freehub body fitted. Not sure which to choose? Get in touch and we’ll help.
Will these fit my disc brake road bike?
Yes — the Hyper 5 uses 12mm through-axle spacing (front 100mm / rear 142mm), which is the standard for disc road bikes since 2016. Not compatible with rim brake frames.
Are they tubeless ready?
Yes. All Hyper 5 rims use tubeless-compatible bead seat geometry. Standard clincher tyres with inner tubes also work perfectly.
What’s in the box?
Front and rear wheel, freehub body (as selected at checkout), tubeless valve stems, 12mm through-axle end caps, and the Winspace user guide.
Sold and supported in Australia by PDL.Bike, authorised Winspace dealer.
(WWHP5D60)
- 377 GPa carbon rim — 64% stiffer than Hyper 3
- Titanium ratchet hub (36T) — 298g per pair, 59g lighter than Hyper 3
- Ceramic bearings standard across the range
- Hidden carbon spoke nipples for a cleaner, faster rim profile
- Tubeless ready — 23mm internal / 30.5mm external rim width
- 21 carbon spokes front and rear, 2:1 lacing pattern
- 60mm depth — maximum aerodynamic advantage for flat roads, time trials, and triathlons
- Freehub options: Shimano, SRAM XDR, Campagnolo, Campagnolo N3W
- Tour de France proven
| Specification | Value |
|---|---|
| Weight (pair) | 1,350g |
| Rim Height | 60mm front and rear |
| Internal Rim Width | 23mm |
| External Rim Width | 30.5mm |
| Rim Material | Toray T700 + M40 Carbon Fibre |
| Spokes | 21 front / 21 rear, carbon fibre, 2:1 lacing |
| Bearings | Ceramic |
| Hub Structure | Titanium Ratchet (36T) |
| Hub Type Options | Shimano / SRAM XDR / Campagnolo / Campagnolo N3W |
| Tyre Compatibility | Tubeless / Clincher |
| Compatible Tyre Width | 25–40mm |
| Max Tyre Pressure | 120 psi |
| Brake Type | Disc Brake only |
| SKU | WWHP5D60 |
| Brand | Winspace |
