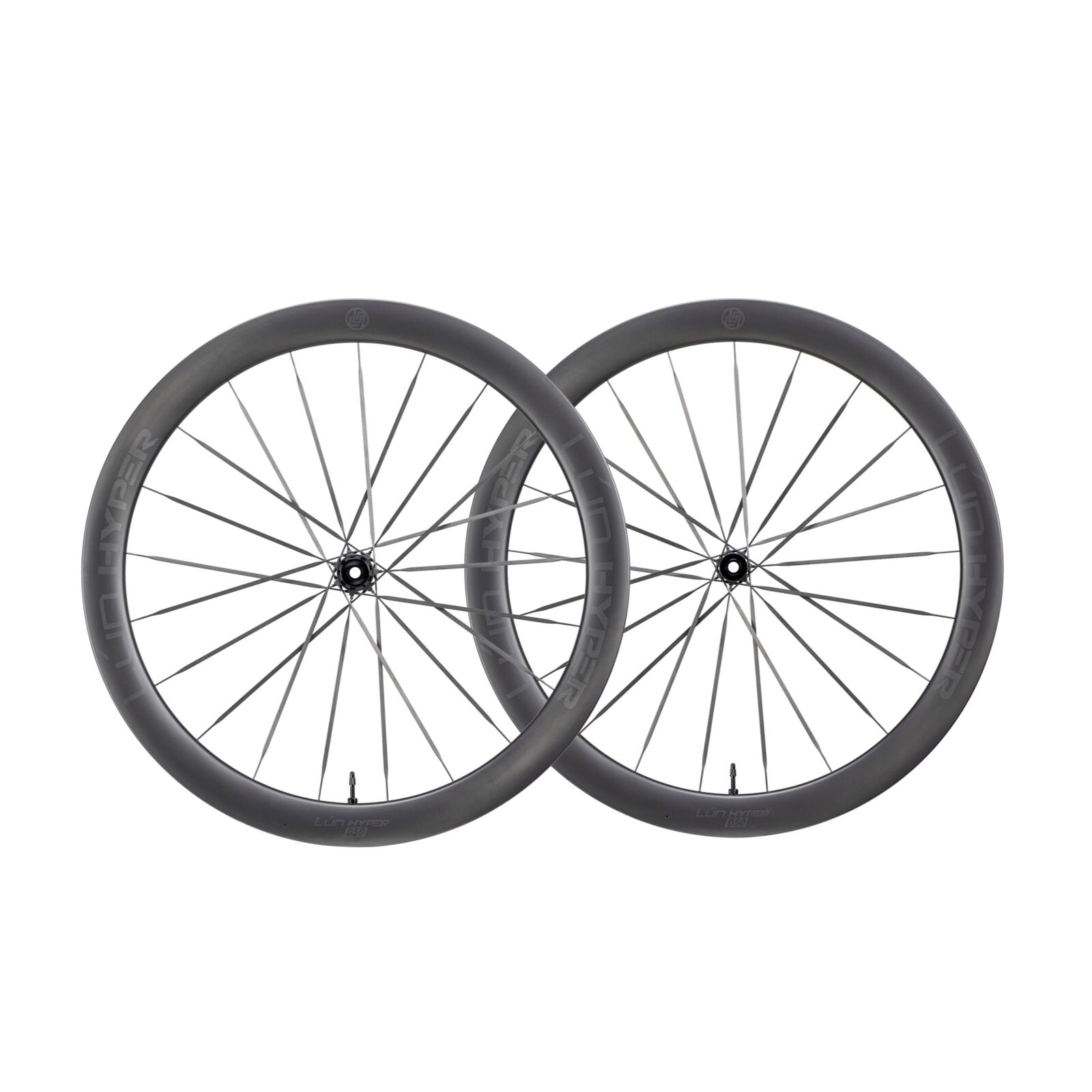

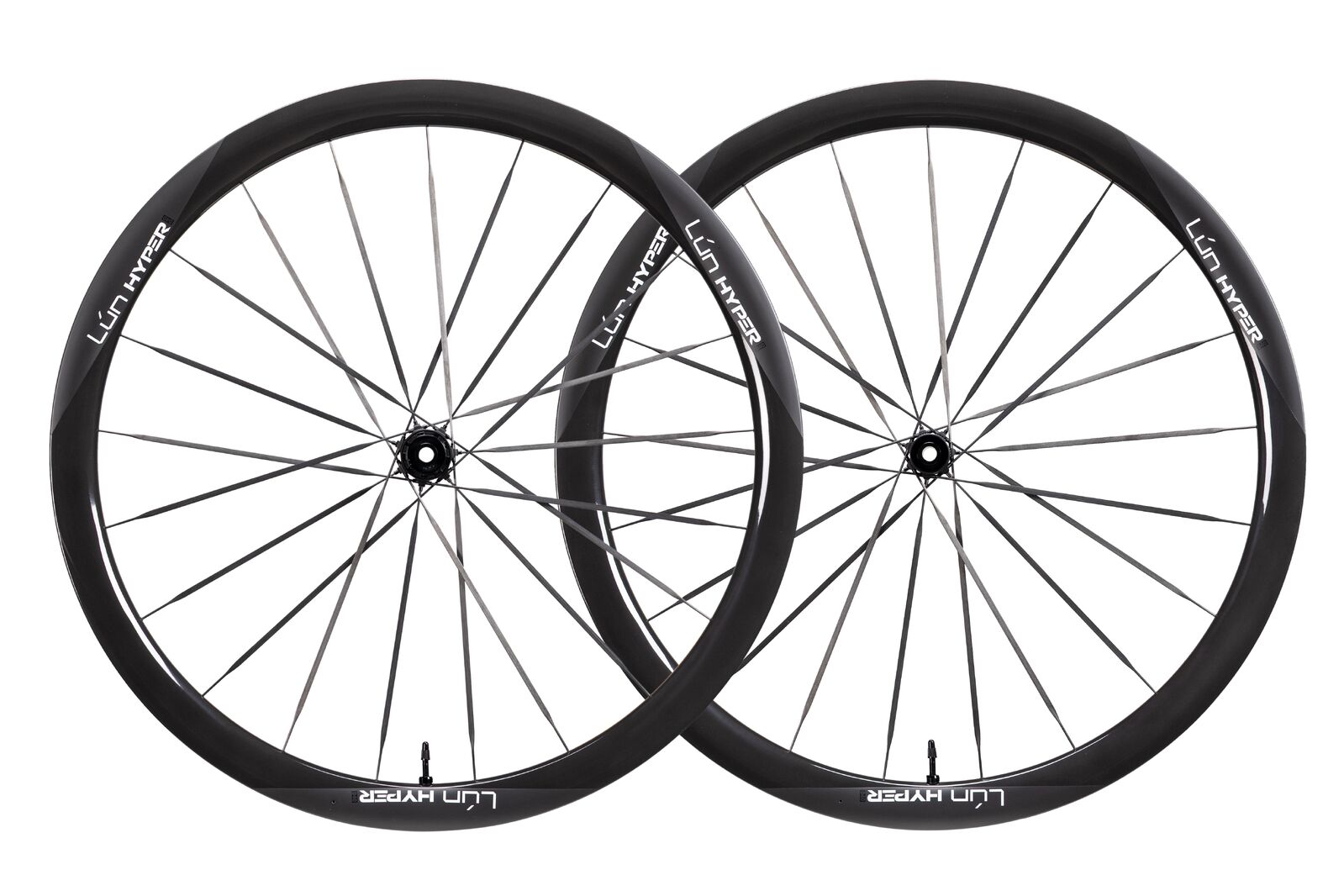

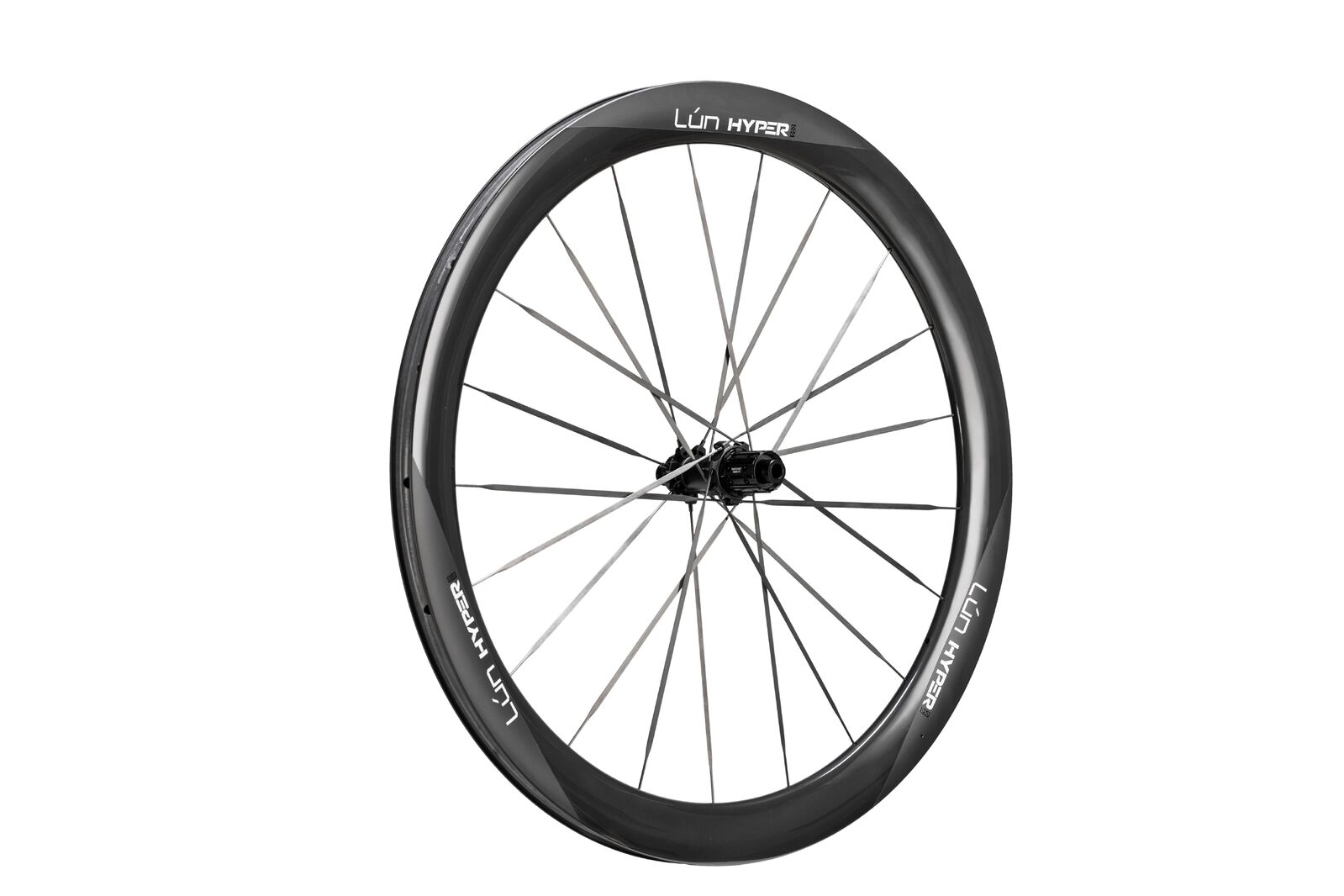

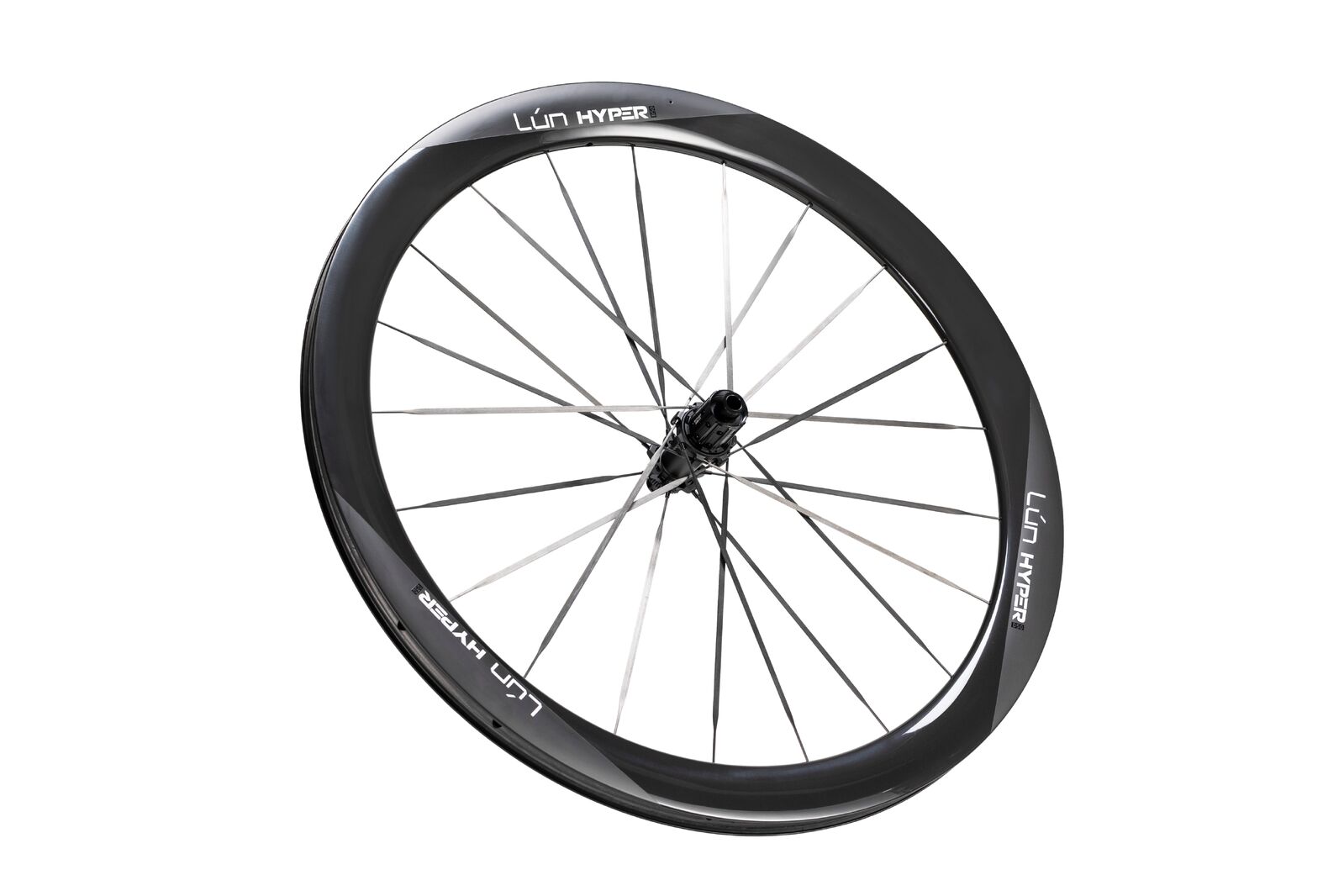

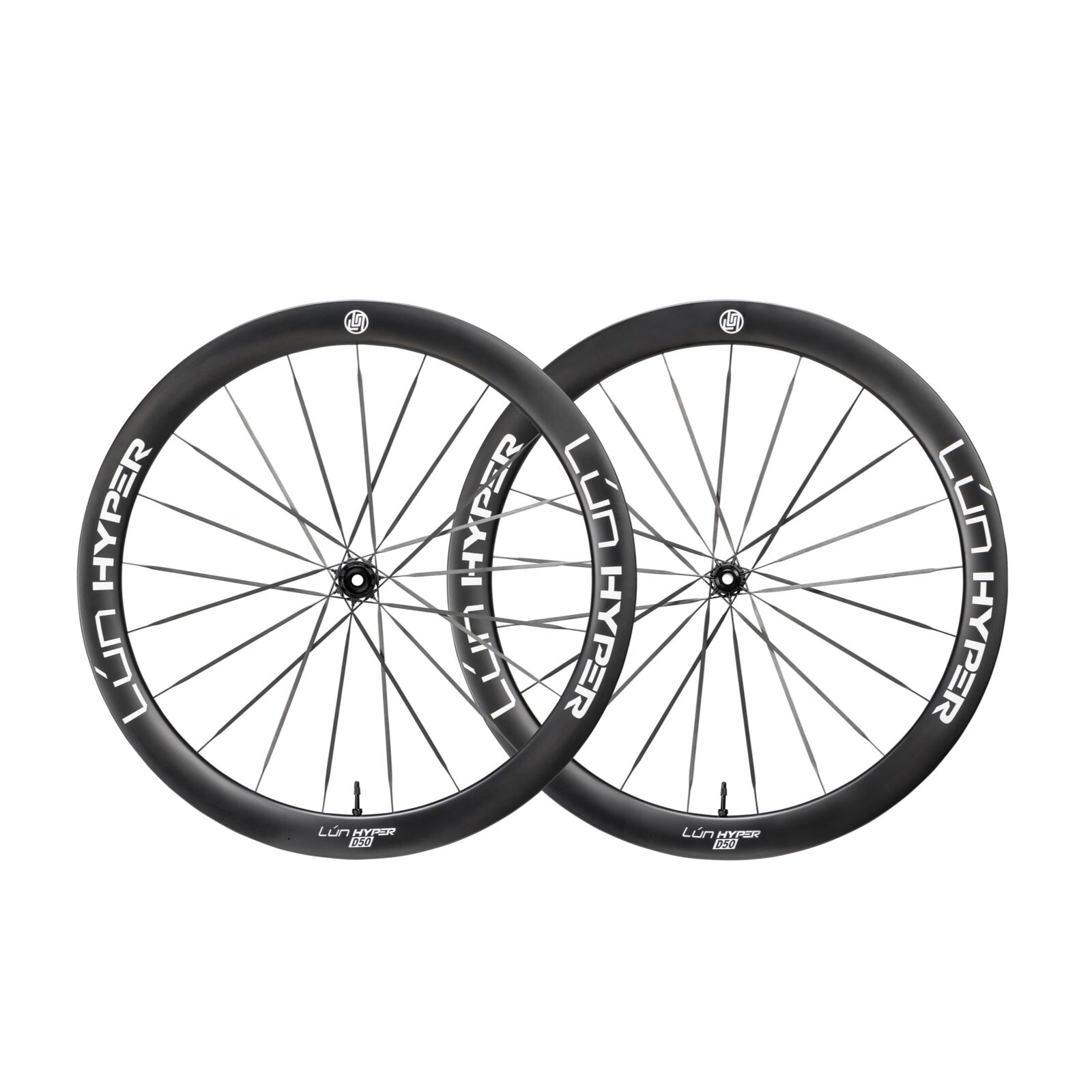

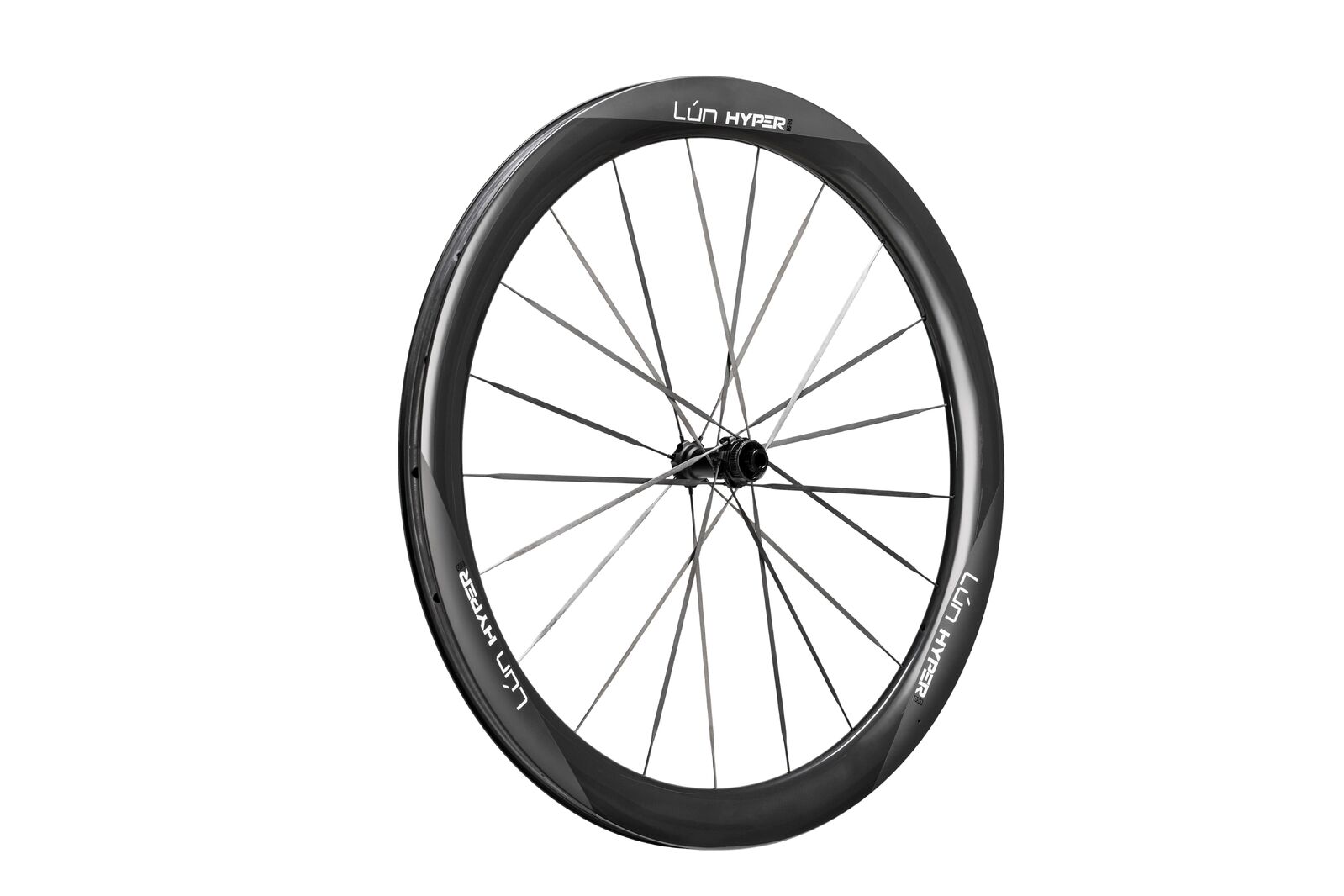

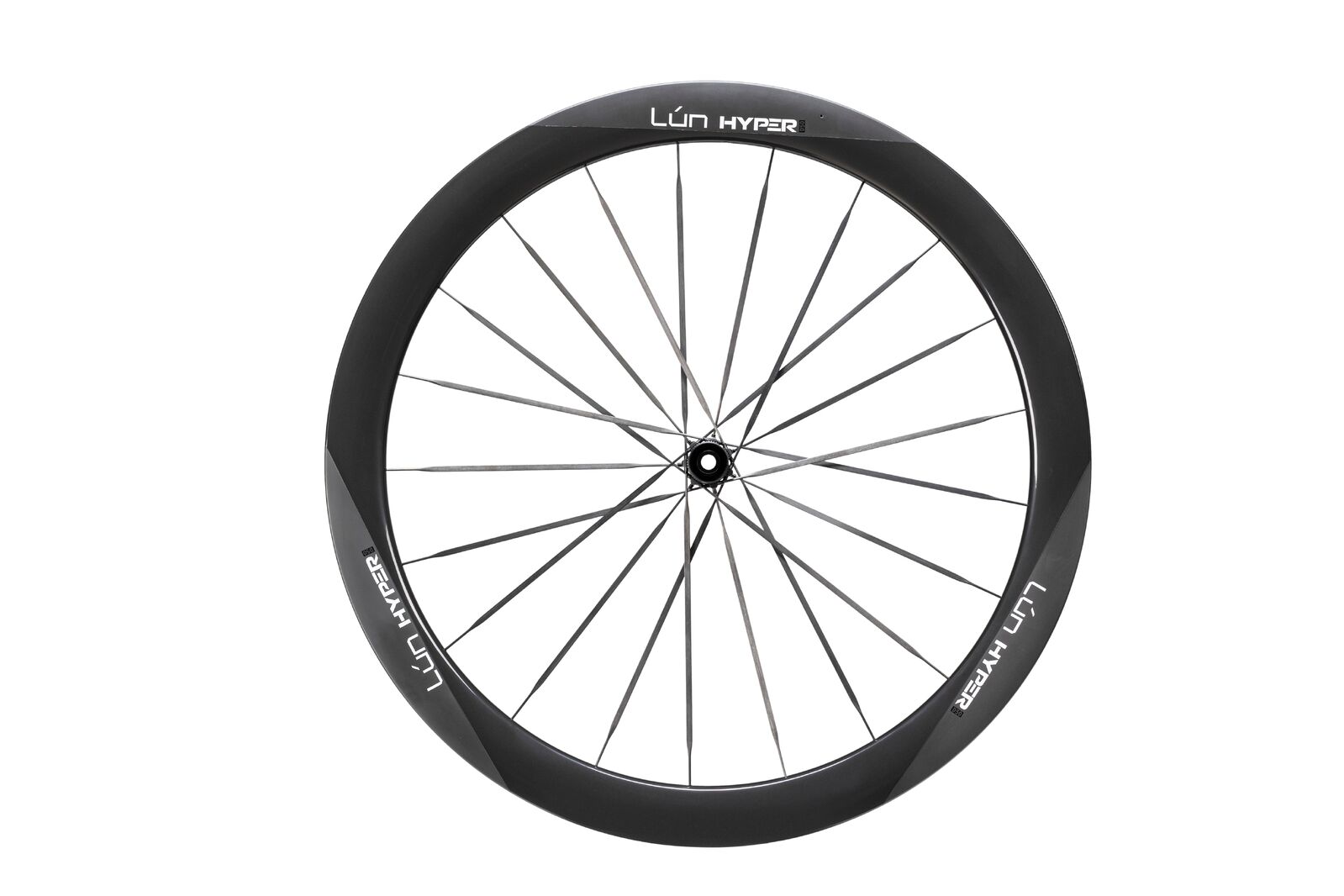

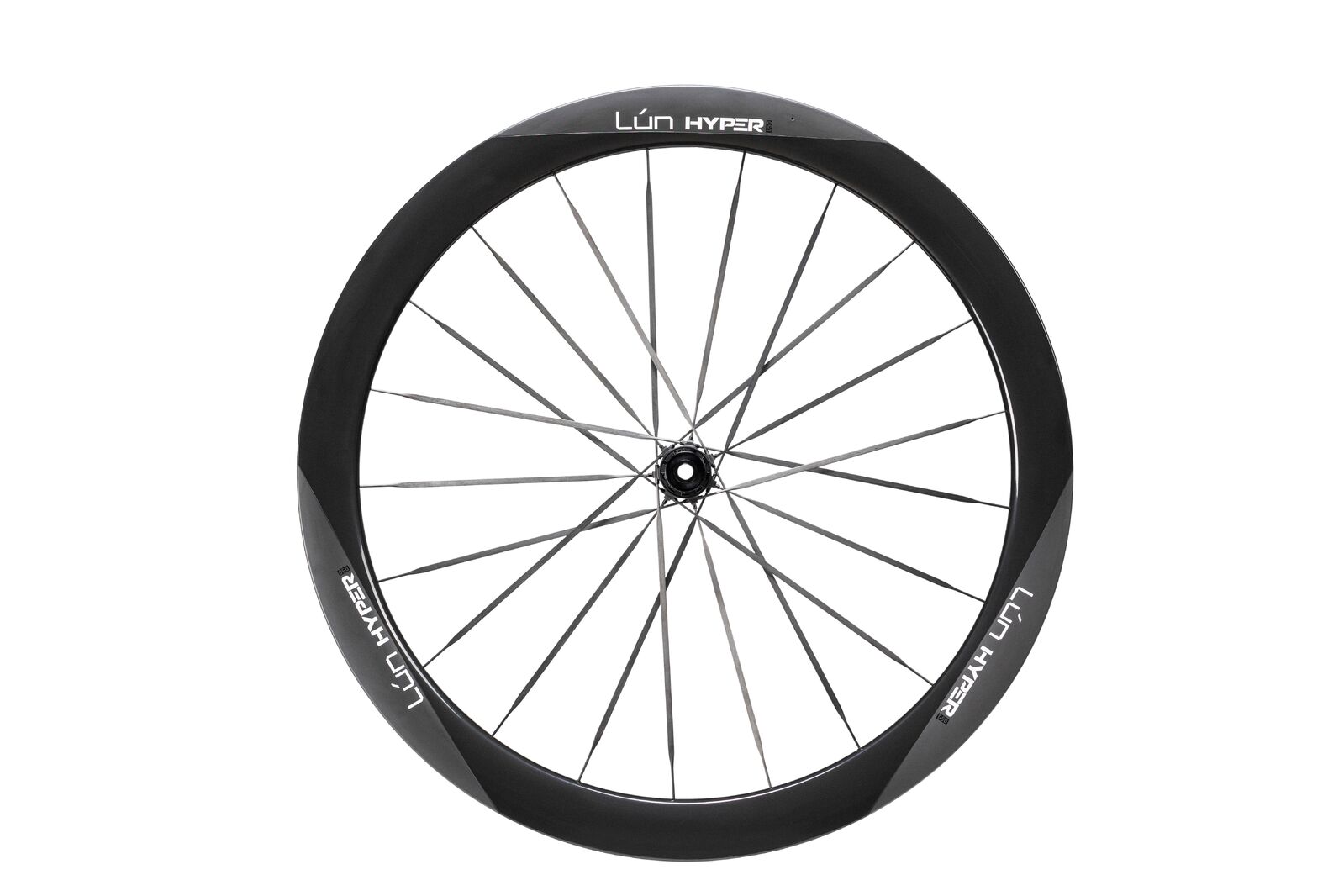

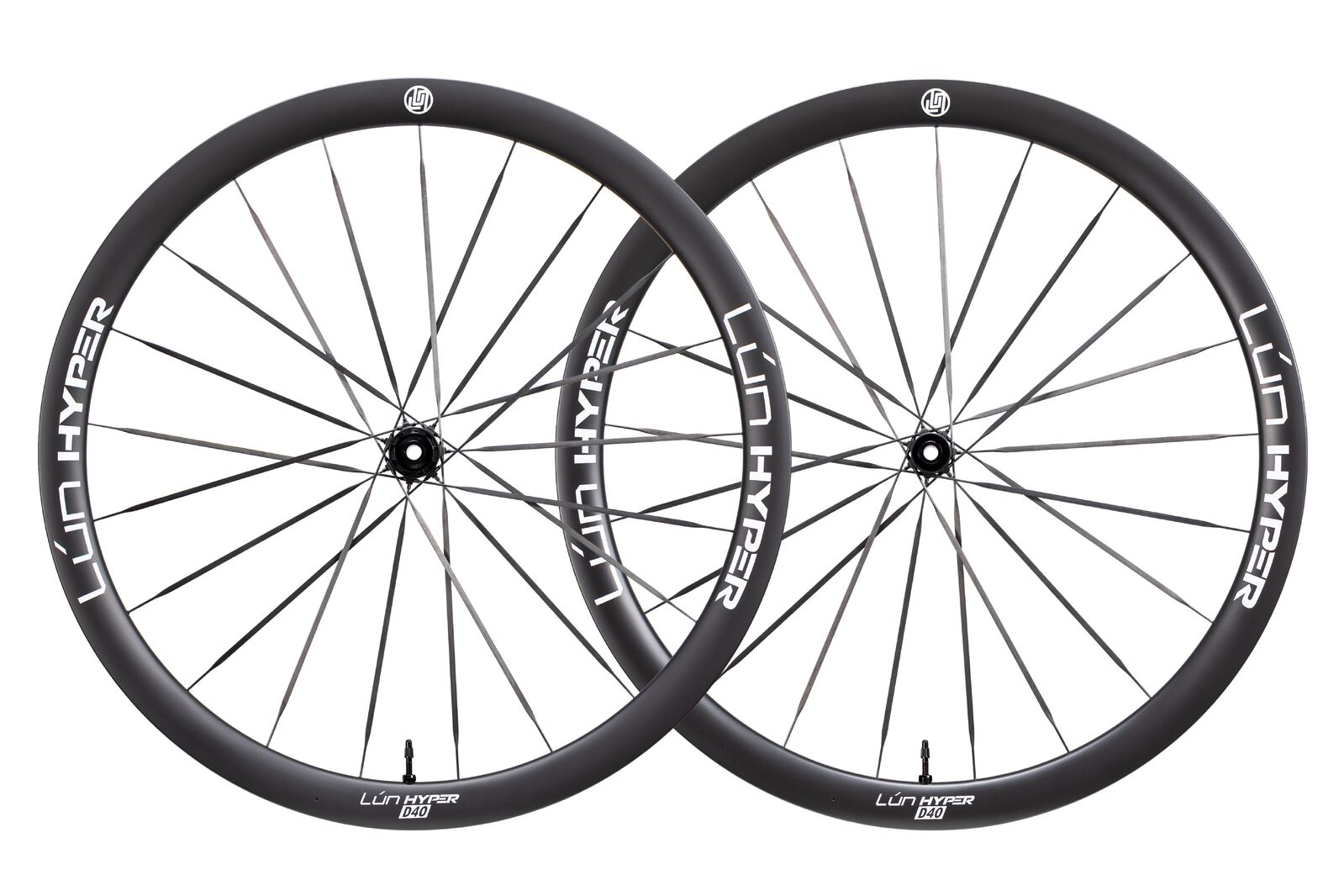

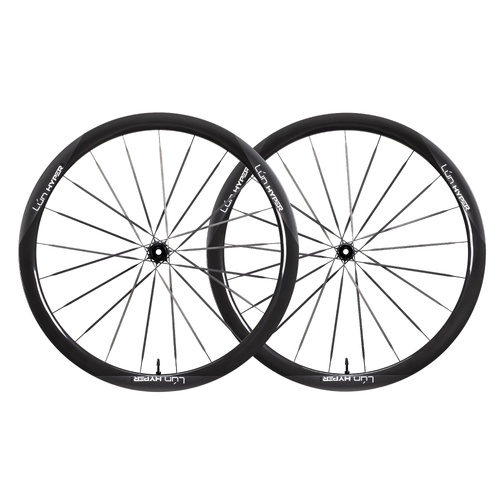

Winspace Lún Hyper 5 40mm Wheelset - UD Matt w/ Laser Decal, Shimano
Stronger. Stiffer. Unyielding.
The Lun Hyper 5 is the wheel Winspace built when good enough stopped being good enough. A new carbon layup delivers a 377 GPa elastic modulus — 64% stiffer than the Hyper 3 — while hidden carbon spoke nipples cut turbulence for a cleaner, faster rim profile. The result: 71g lighter, 2W faster at 48 km/h, and stronger under any load you put through it.
Tour de France proven. The Hyper 5 made its grand tour debut and delivered a top-10 stage result. The same engineering. The same wheels. Available to you.
Why the 40mm?
Low enough to handle crosswinds confidently, stiff enough to sprint on, light enough to enjoy on any climb. The 40mm depth is the go-to for hilly road races, gran fondos, technical criteriums, and everyday fast training. If you only own one set of carbon wheels, make them the 40mm.
Key Technologies
377 GPa Carbon Rim
64% stiffer than the Hyper 3. Less flex under sprinting loads, more precise steering feedback, and a rim that holds its line at speed.
Titanium Ratchet Hub (36T)
298g hubset — 59g lighter than the Hyper 3. Near-instant engagement with a modular design built for straightforward servicing.
Ceramic Bearings
Lower rolling resistance, longer service intervals, and smoother performance under load. Standard across the entire Hyper 5 range.
Hidden Carbon Spoke Nipples
A flush spoke design creates a cleaner rim profile, reducing turbulence and aerodynamic drag where it matters most.
Tubeless Ready
23mm internal / 30.5mm external rim width, optimised for 25–40mm tyres at up to 120 psi. Works with standard clincher setups too.

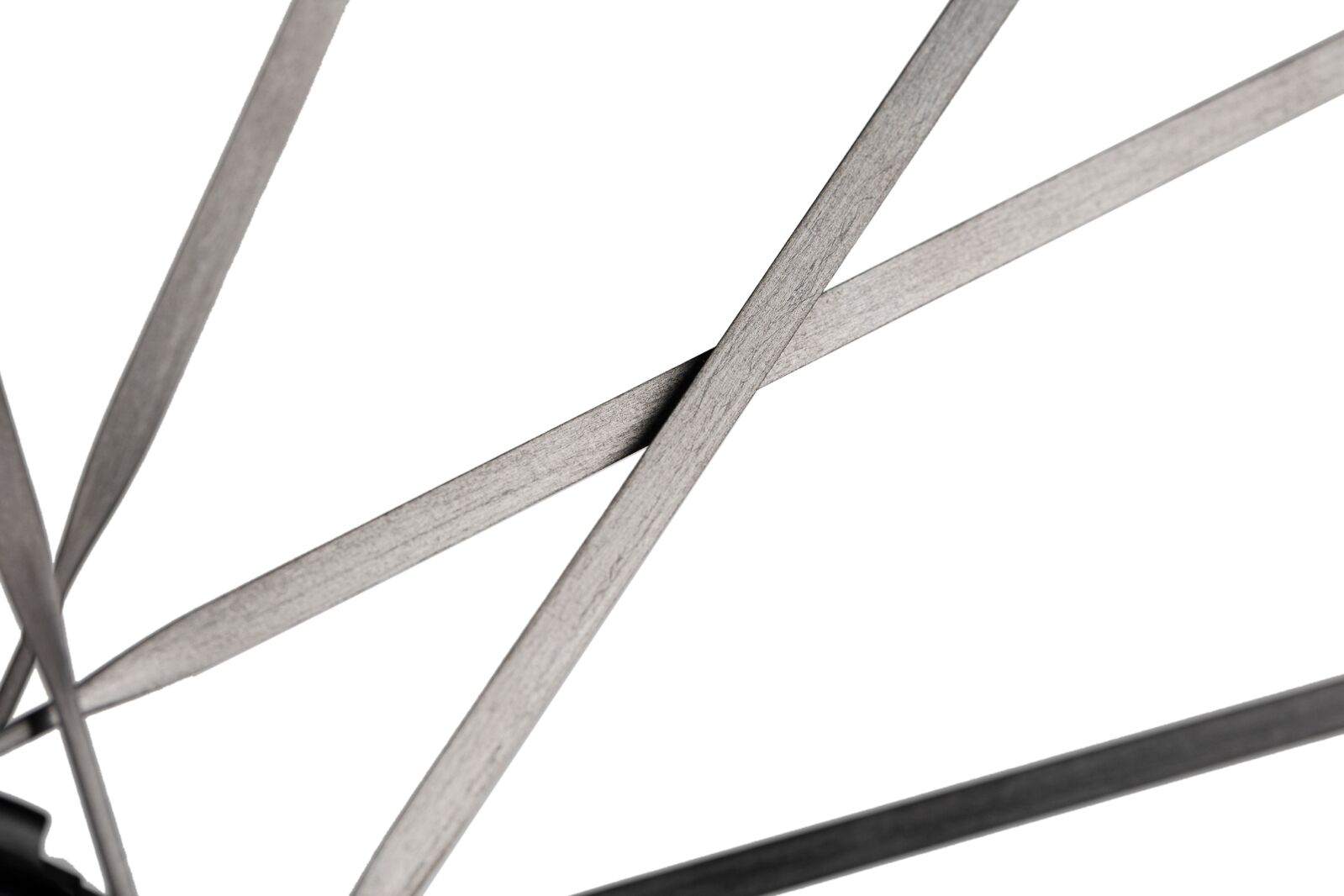

2:1 Carbon Spoke Lacing
21 spokes front and rear in a 2:1 pattern, balancing stiffness and weight distribution for maximum power transfer and durability.
Specifications
| Specification | Value |
|---|---|
| Weight (pair) | 1,195g |
| Rim Height | 40mm front and rear |
| Internal Rim Width | 23mm |
| External Rim Width | 30.5mm |
| Rim Material | Toray T700 + M40 Carbon Fibre |
| Spokes | 21 front / 21 rear, carbon fibre, 2:1 lacing |
| Bearings | Ceramic |
| Hub Structure | Titanium Ratchet (36T) |
| Hub Type Options | Shimano / SRAM XDR / Campagnolo / Campagnolo N3W |
| Tyre Compatibility | Tubeless / Clincher |
| Compatible Tyre Width | 25–40mm |
| Max Tyre Pressure | 120 psi |
| Brake Type | Disc Brake only |
Choose Your Depth
The Hyper 5 comes in three rim depths. Same hub, same spokes, same carbon technology — the depth changes the character of the ride.
Hub Type Compatibility
Select your hub type at checkout. Not sure? Get in touch and we’ll help you pick the right one.
| Hub Type | Compatible Drivetrains |
|---|---|
| Shimano | Shimano 11-speed, Shimano 12-speed, SRAM 11-speed |
| SRAM XDR | SRAM 12-speed AXS (RED, Force, Rival eTap) |
| Campagnolo | Campagnolo 10, 11, and 12-speed |
| Campagnolo N3W | Campagnolo Ekar and Super Record WRL |
Hyper 5 — From Us to the Tour de France
FAQ
Does the wheelset come with a freehub?
Yes — choose your hub type at checkout. Shimano covers most 11/12-speed setups, SRAM XDR for AXS groupsets, Campagnolo and N3W for Campy drivetrains. The wheelset ships complete with your selected freehub body fitted. Not sure which to choose? Get in touch and we’ll help.
Will these fit my disc brake road bike?
Yes — the Hyper 5 uses 12mm through-axle spacing (front 100mm / rear 142mm), which is the standard for disc road bikes since 2016. Not compatible with rim brake frames.
Are they tubeless ready?
Yes. All Hyper 5 rims use tubeless-compatible bead seat geometry. Standard clincher tyres with inner tubes also work perfectly.
What’s in the box?
Front and rear wheel, freehub body (as selected at checkout), tubeless valve stems, 12mm through-axle end caps, and the Winspace user guide.
Sold and supported in Australia by PDL.Bike, authorised Winspace dealer.
(WWHP5D40)
- UCI World Tour proven — raced to a Tour de France top 10 result
- 71g lighter, 2W faster at 48 km/h, and 64% stiffer than the Hyper 3
- 377 GPa carbon rim — less flex under sprint loads, precise steering feedback
- Titanium 36T ratchet hub — 298g per pair, near-instant engagement
- Ceramic bearings standard — lower rolling resistance, longer service life
- Hidden carbon spoke nipples — flush design reduces turbulence at speed
- Tubeless ready — 23mm internal / 30.5mm external, optimised for 25–40mm tyres
- Disc brake only — 12mm through-axle, centre-lock
- Choose your freehub at checkout: Shimano, SRAM XDR, Campagnolo, or N3W
| Weight (pair) | 1,195g |
| Rim Depth | 40mm |
| Internal Rim Width | 23mm |
| External Rim Width | 30.5mm |
| Carbon Fibre | Toray T700 + M40, 377 GPa |
| Spokes | 21F / 21R — carbon fibre, 2:1 lacing |
| Bearings | Ceramic (standard) |
| Hub | Titanium ratchet, 36T — 298g per pair |
| Freehub Options | Shimano HG, SRAM XDR, Campagnolo, Campagnolo N3W |
| Tyre Compatibility | Tubeless / Clincher |
| Compatible Tyre Width | 25–40mm |
| Max Tyre Pressure | 120 psi |
| Brake Type | Disc only — 12mm through-axle, centre-lock |
| In the Box | Front & rear wheel, freehub body (as selected), tubeless valve stems, 12mm through-axle end caps, Winspace user guide |
| SKU | WWHP5D40 |
| Brand | Winspace |
