Toray T700, M40 + T1100 Tri-Modulus Carbon

Winspace specifies three Toray carbon grades in the Gryper 2 rim layup. T700 provides high tensile strength for impact resilience. M40 adds intermediate-modulus stiffness — responsive without brittleness. T1100 is Toray's flagship ultra-high modulus grade, delivering maximum stiffness-to-weight. The result is a more sophisticated tri-modulus construction than single or dual-modulus designs, with a finished weight of 648g front and 766g rear.

T-Head Spokes — 21F / 21R, 2:1 Lacing Both Ends

The Gryper 2 uses T-head spokes on both wheels — a design where the spoke head locks into a T-slot in the hub flange, eliminating the pull-through risk of traditional J-bend or straight-pull systems. 21 spokes front and rear, both laced 2:1 (two drive-side spokes for every one non-drive), equalises tension across the hub and delivers a stiffer, more durable wheel under repeated load.

36-Tooth Ratchet Hub System

The 36-tooth ratchet engagement hub delivers instant, positive power transfer with a minimal dead angle of just 10 degrees. Compared to standard pawl-based hubs, ratchet-style engagement is more durable under repeated load cycles and has a sharper, more mechanical feel that gravel racers prefer for technical terrain and sprint finishes.

32mm Internal — 38mm External Width

At 38mm external width the Gryper 2 rim is wider than the previous Gryper's 34mm, for superior aerodynamic tyre transition and reduced turbulence at the tyre-rim junction. The 32mm internal cavity is built for the full gravel tyre range — from 44mm race slicks at low pressure to 70mm adventure knobblies — with a maximum inflation pressure of 60psi.

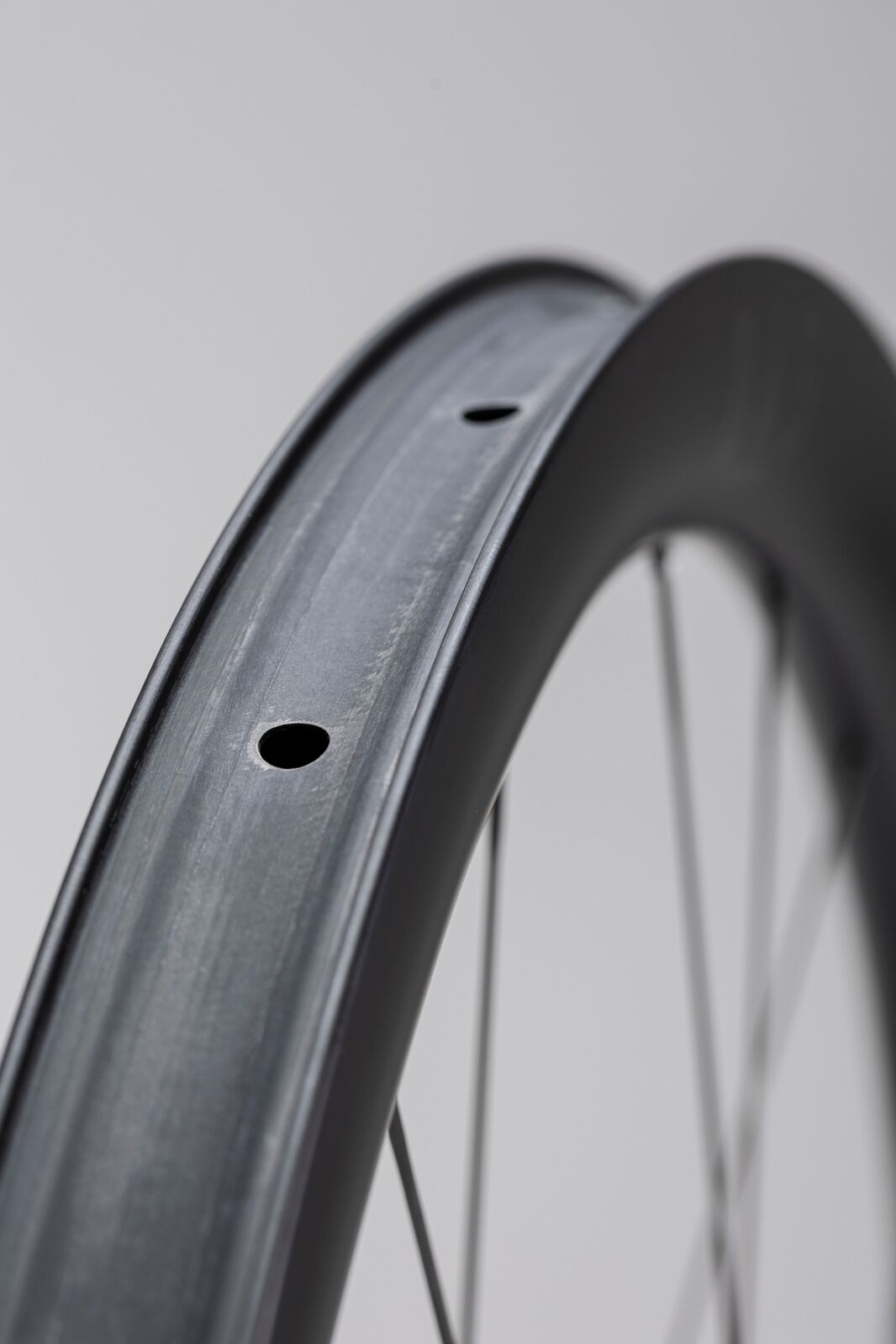

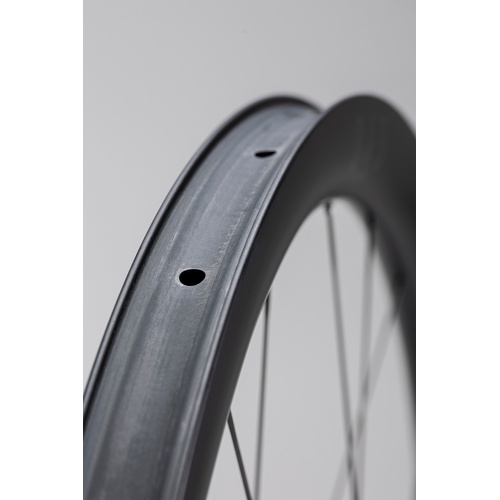

Tubeless Ready — 44–70mm Tyre Range

Engineered for the full range of gravel tyre choice — from fast 44mm race slicks at 30–40psi through to 70mm adventure knobblies at single-digit trail pressures. Tubeless-compatible rim bed supports lower running pressures without pinch-flat risk. The wide 32mm internal cavity maintains correct tyre profile at both ends of the range. Maximum tyre pressure 60psi.

Shimano, SRAM XDR, Campagnolo and Microspline Freehubs

Available with Shimano HG 11/12-speed, SRAM XDR 12-speed, Shimano Microspline 12-speed, and Campagnolo 10/11/12-speed freehub configurations — covering every major drivetrain standard in gravel racing. Centre-lock disc brake mount throughout.
