SRAM Red/Force AXS Hydraulic Disc Brake Hose Fitting Kit (5-Pack)
Replacing AXS brake hose? These are the fittings. Five complete sets, T8 Torx included.
The SRAM Red/Force AXS Disc Brake Hose Fitting Kit is the complete connection hardware for cutting and installing hydraulic brake hose on SRAM AXS 2-piece hydraulic disc brake calipers. Each set provides everything you need for one caliper-end hose connection: a threaded hose barb, short compression nut, boot, and red compression olive. This 5-pack gets you through five hose installs — a full workshop stock — and includes the T8 Torx key needed to torque the barb correctly.
AXS 2-piece calipers need a different fitting. SRAM's Red AXS and Force AXS hydraulic disc brake calipers use a 2-piece caliper design where the hose enters through a compression nut and boot assembly — not the lever-style barb-and-olive only connection. This kit includes the correct short compression nut and boot for the caliper end. It is not a substitute for the Stealthamajig (lever-end kit) — you may need both for a full hose install.

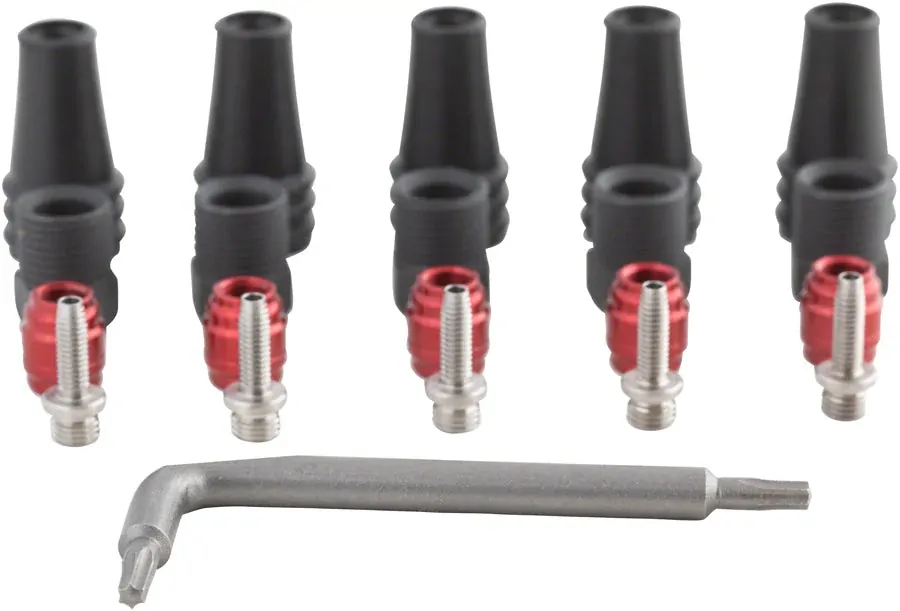

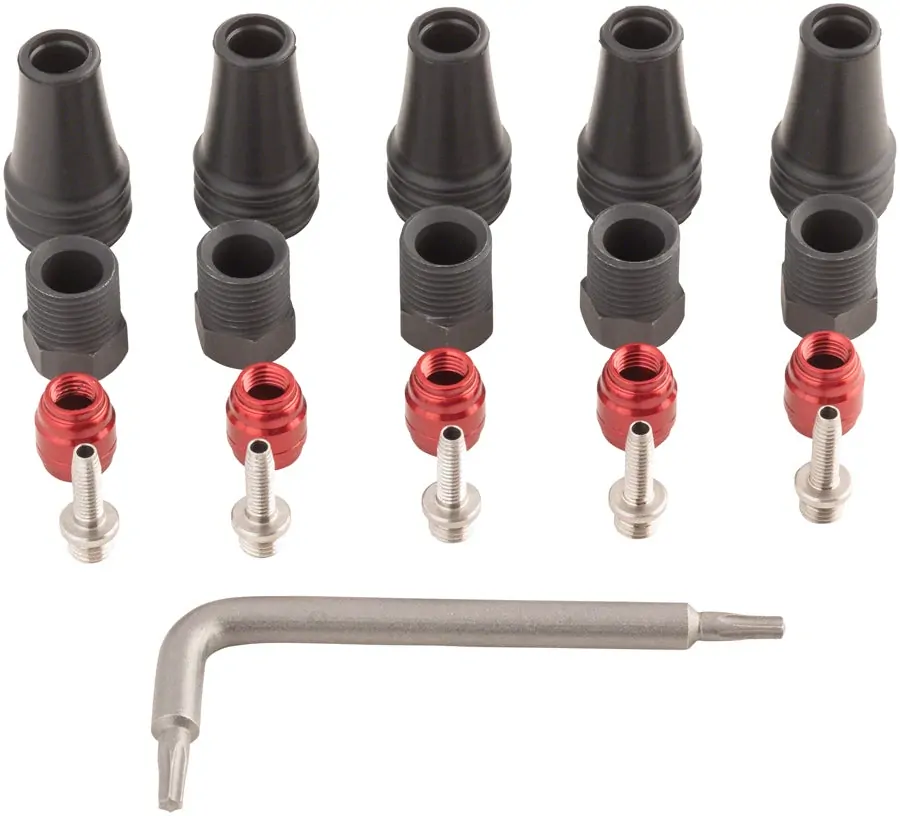

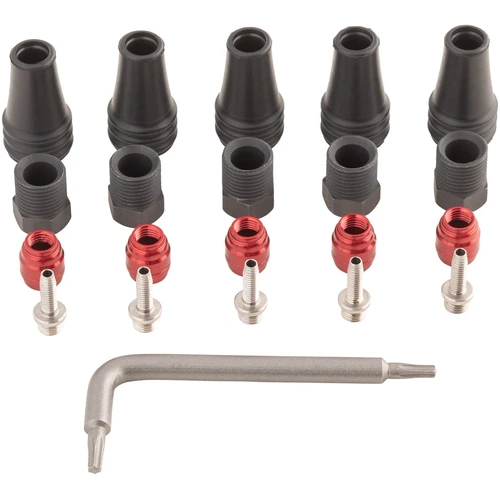

What's in the kit
5× Threaded hose barbs
The barb threads into the caliper body and the brake hose slides over it. SRAM-spec threading — do not substitute with aftermarket barbs. Torque to spec with the included T8 Torx key.
5× Short compression nuts
The "short nut" that threads onto the caliper inlet to capture the olive and create the hydraulic seal. Specific to the AXS 2-piece caliper design — shorter than lever-end compression hardware to suit the caliper port geometry.
5× Boots
Rubber boot that covers the caliper hose entry point, keeping water and contamination away from the hydraulic connection. Slides over the hose before cutting — route hose, fit boot, then crimp olive and seat barb.
5× Red compression olives
The red-coloured olive that crimps onto the hose outer braid to create the hydraulic seal against the barb. Red colour distinguishes AXS-spec olives from Avid-era silver olives — use only the correct generation for your caliper.
1× T8 Torx tool
T8 Torx key for torquing the threaded hose barb into the caliper body. One tool is included per kit — sufficient for all five installs. Torque the barb before fitting the olive and compression nut assembly.
Workshop value — 5 complete sets
Each kit provides five full caliper-end connection sets. Ideal for home mechanics or professional workshops running a fleet of AXS-equipped bikes. Always have spares on hand — a damaged olive or lost boot means a grounded bike.
This kit vs the Stealthamajig — what's the difference?
| Kit | Contents | Used at | Caliper type |
|---|---|---|---|
| Stealthamajig (11.5378.803.xxx) | Barb + olive only | Lever end (handlebar) | All SRAM hydraulic brakes |
| AXS 2-Piece Hose Fitting Kit (this product) | Barb + short compression nut + boot + red olive | Caliper end | Red AXS / Force AXS 2-piece calipers only |
Compatibility
| Brake group | Compatible? | Notes |
|---|---|---|
| SRAM Red eTap AXS | ✓ Yes | 2-piece caliper — requires this kit at the caliper end |
| SRAM Force eTap AXS | ✓ Yes | 2-piece caliper — requires this kit at the caliper end |
| SRAM Rival AXS / Apex AXS | ✗ No | 1-piece caliper — use Stealthamajig at caliper end |
| SRAM Level / Maven / Code (non-AXS) | ✗ No | Different caliper design — use appropriate Stealthamajig SKU |
| Avid brakes (all) | ✗ No | Avid uses silver-generation olives, different barb spec |
Specifications
| Brand | SRAM |
| Part number | 11.5018.061.000 |
| Pack quantity | 5 complete sets |
| Contents per set | 1× threaded hose barb, 1× short compression nut, 1× boot, 1× red compression olive |
| Tool included | 1× T8 Torx key |
| Caliper type | AXS 2-piece hydraulic disc brake caliper |
| Compatible brakes | SRAM Red eTap AXS, SRAM Force eTap AXS |
| Olive colour | Red (AXS-generation specification) |
| Hose compatibility | SRAM hydraulic brake hose (all current AXS hose) |
| Not compatible with | Rival AXS, Apex AXS, Level, Maven, Code, and all Avid brakes |
(11.5018.061.000)
| SKU | 11.5018.061.000 |
| Brand | SRAM |
