Winspace M6 Aero Carbon Frameset | Road Bike Frames

Four carbon grades, 8.9 watts saved, 2-tonne load rating. The M6 is proper aero engineering at a price that doesn't require a sponsor.

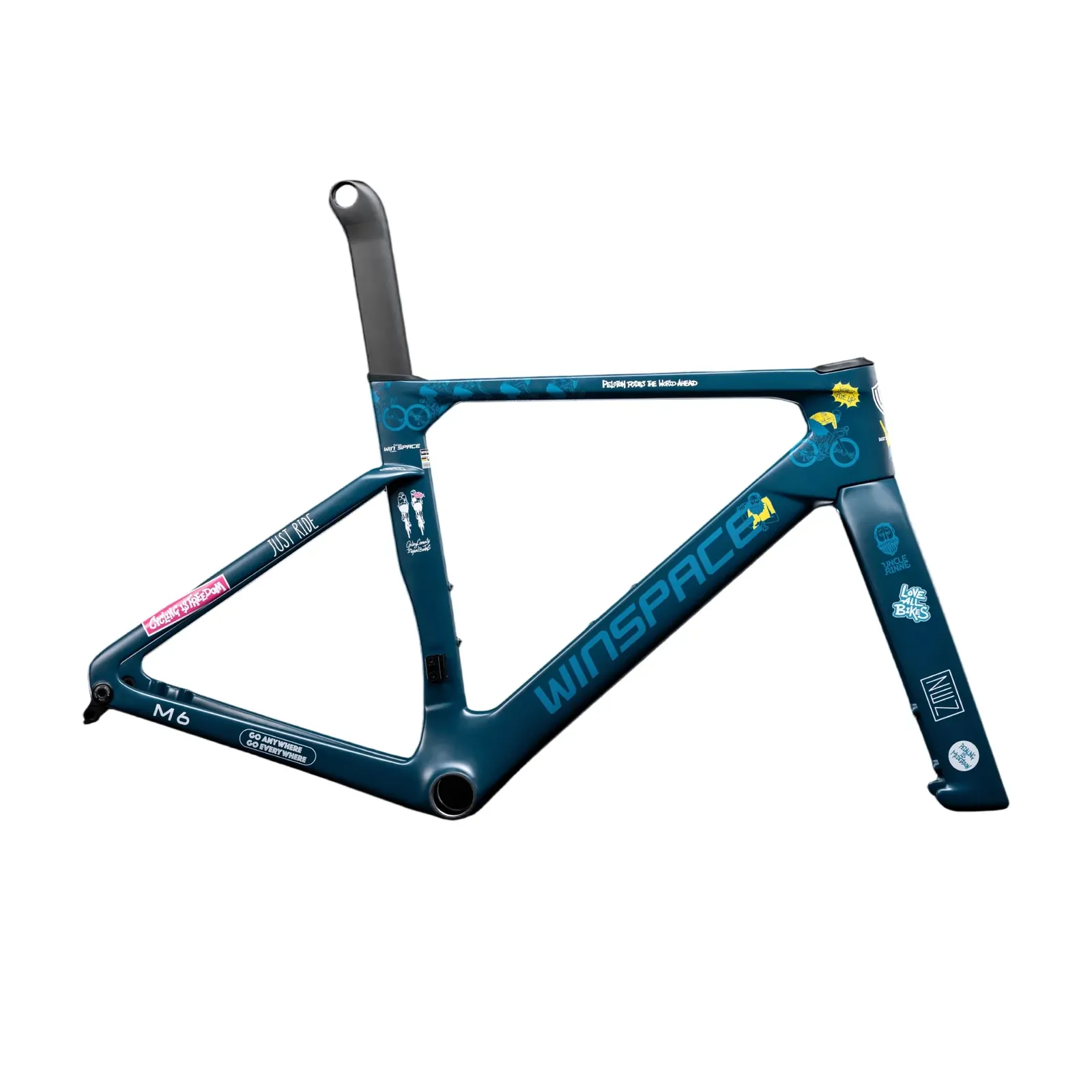

The Winspace M6 is a full aero road frameset built around a quad-fibre carbon layup - Toray T800, T700, M40, and ultra-high-modulus M60 - each grade placed exactly where it earns its weight. M60 military-grade carbon, used in aerospace and defence applications, is concentrated at the bottom bracket shell and chainstay junction where power transfer demands maximum rigidity. T800 runs through the main triangle for the optimal strength-to-weight ratio. T700 is layered into the seat tube and seatstays to introduce measured vertical compliance - enough to take the edge off a long day without robbing you of efficiency. The frame is load-tested to 2 tonnes of static force and the full aero tube profile saves 8.9 watts at race speeds compared to a conventional round-tube design. At $2,999, this is real aero engineering without the badge premium.

Four design details set the M6 apart technically. The sharpened head tube profile cuts airflow cleanly at the most aerodynamically critical point on the front end. The angled T-tail chainstay section channels air efficiently around the rear wheel rather than creating turbulence behind it. A wide fork crown and blade profile generates positive aero interaction with the front wheel across real-world yaw angles. The embedded moulding process integrates cable entry ports and internal routing channels during the carbon layup itself - not bolted on after manufacture - giving a structurally superior and cleaner result. Fully integrated routing handles Shimano Di2, SRAM AXS, and mechanical groupsets without modification. The T47 threaded bottom bracket eliminates press-fit creak while retaining a wide shell for maximum power transfer stiffness. Clearance for 32mm tyres means you can run a 28mm race setup or a 32mm training tyre on the same frame.

Frameset includes frame, fork, headset, and seatpost. The T47 threaded BB shell requires adaptor cups - see compatibility guide below for Shimano, SRAM DUB, and Campagnolo options. Di2, AXS, and mechanical routing are all supported through the fully integrated internal system.

~900g

Frame Weight (Size M)

8.9W

Aero Watts Saved

2 Tonne

Load Rating

32mm

Max Tyre Clearance

6 Sizes

XS to XXL

What makes this worth it

Quad-Fibre Carbon Layup

T800, T700, M40, and ultra-high-modulus M60 fibres are placed exactly where each grade earns its weight - M60 at high-load power transfer zones, T700 in compliance zones. Most brands use two grades. Winspace uses four.

8.9 Watts Aerodynamic Advantage

Every tube section is aerodynamically profiled - including the fork, seatstays, and chainstays - working together rather than just the down tube in isolation. The M6 saves 8.9 watts at race speeds over a conventional round-tube design.

Embedded Moulding & Integrated Routing

Cable entry ports and internal routing channels are integrated during carbon layup - not bolted on post-manufacture. All cables and hydraulic hoses enter at the stem and disappear completely. Compatible with Di2, AXS, and mechanical without modification.

T47 Threaded Bottom Bracket

T47 delivers maximum power transfer stiffness at a wide shell diameter - without press-fit creak or the service headaches that come with it. Threaded installation means any shop can service it. Compatible with Shimano, SRAM DUB, and Campagnolo via T47 adaptor cups.

Angled T-Tail Chainstay

The chainstay profiles are angled to channel airflow around the rear wheel rather than creating turbulence. Combined with the sharpened head tube and wide fork, this is whole-frame aerodynamics - not just a fast-looking down tube with round tubes everywhere else.

32mm Tyre Clearance

Run a 28mm for race-day performance or 32mm for training and wet-weather confidence. Real-world tyre widths - not the narrow spec-sheet numbers that look good next to a competitor's 28mm limit.

Bottom bracket compatibility guide

The T47 threaded shell (68×47mm) requires adaptor cup sets - these are not included with the frameset and need to be ordered to match your groupset.

Shimano (24mm spindle): T47 outboard cups with 24mm inner diameter. Compatible options: Wheels Manufacturing T47 Outboard Road, Praxis T47, Token T47.

SRAM DUB (30mm spindle): T47 DUB cups with 30mm inner diameter. Compatible options: Wheels Manufacturing T47 DUB, SRAM T47 DUB, Praxis T47 DUB.

Campagnolo (25mm spindle): T47 outboard cups with 25mm inner diameter. Compatible options: Wheels Manufacturing T47 Campagnolo, Token T47 Campagnolo.

Geometry

All dimensions in mm unless stated. Measured with 700C×32mm tyre.

Measurement	XS	Small	Medium	Large	XL	XXL
Seat Tube	430	460	480	510	530	560
Stack	507	521	535	550	564	593
Reach	365	374	383	391	400	407
Top Tube	502	514	536	554	571	587
Head Tube	107	120	130	145	160	187
Wheelbase	972	981	980	992	1006	1013
Chainstay	410	410	410	410	410	410
BB Drop	72	72	72	72	72	72
Seat Tube Angle	74.9°	74.9°	74.0°	73.5°	73.1°	73.1°
Head Tube Angle	70.8°	71.3°	72.2°	72.3°	72.3°	73.2°
Standover Height	729	752	769	791	808	837
Stack / Reach Ratio	1.39	1.39	1.40	1.41	1.41	1.46
Rider Height (est.)	155–163cm	163–170cm	170–178cm	178–185cm	185–193cm	193–200cm

Rider height ranges are for reference only. Use stack and reach to size accurately. If between sizes, consult a qualified bike fitter.

Specifications

Brand	Winspace
Model	M6 Aero Carbon Frameset
Frame Material	Toray T800 / T700 / M40 / M60 quad-fibre carbon
Frame Weight	~900g (size M)
Structural Rating	2-tonne static load tested
Aero Performance	8.9 watts saved vs conventional round-tube design
Fork	Full carbon aero fork, 369mm axle-to-crown (all sizes)
Bottom Bracket	T47 threaded (68×47mm) - BB cups not included
Tyre Clearance	Up to 32mm (700C)
Cable Routing	Fully integrated internal routing (Di2 / AXS / mechanical)
Brake Standard	Flat mount disc
Chainstay Length	410mm (all sizes)
BB Height	271mm (all sizes)
Available Sizes	XS (430) / Small (460) / Medium (480) / Large (510) / XL (530) / XXL (560)
Includes	Frame + fork + headset + seatpost
Colours Available	Frost White / Chameleon White / Mystic Purple / Carbon Black / Crimson Flame / Frost Black / Nusantara / Roubaix / Uncle Rinne Collaboration

(WFM6ARUR)
