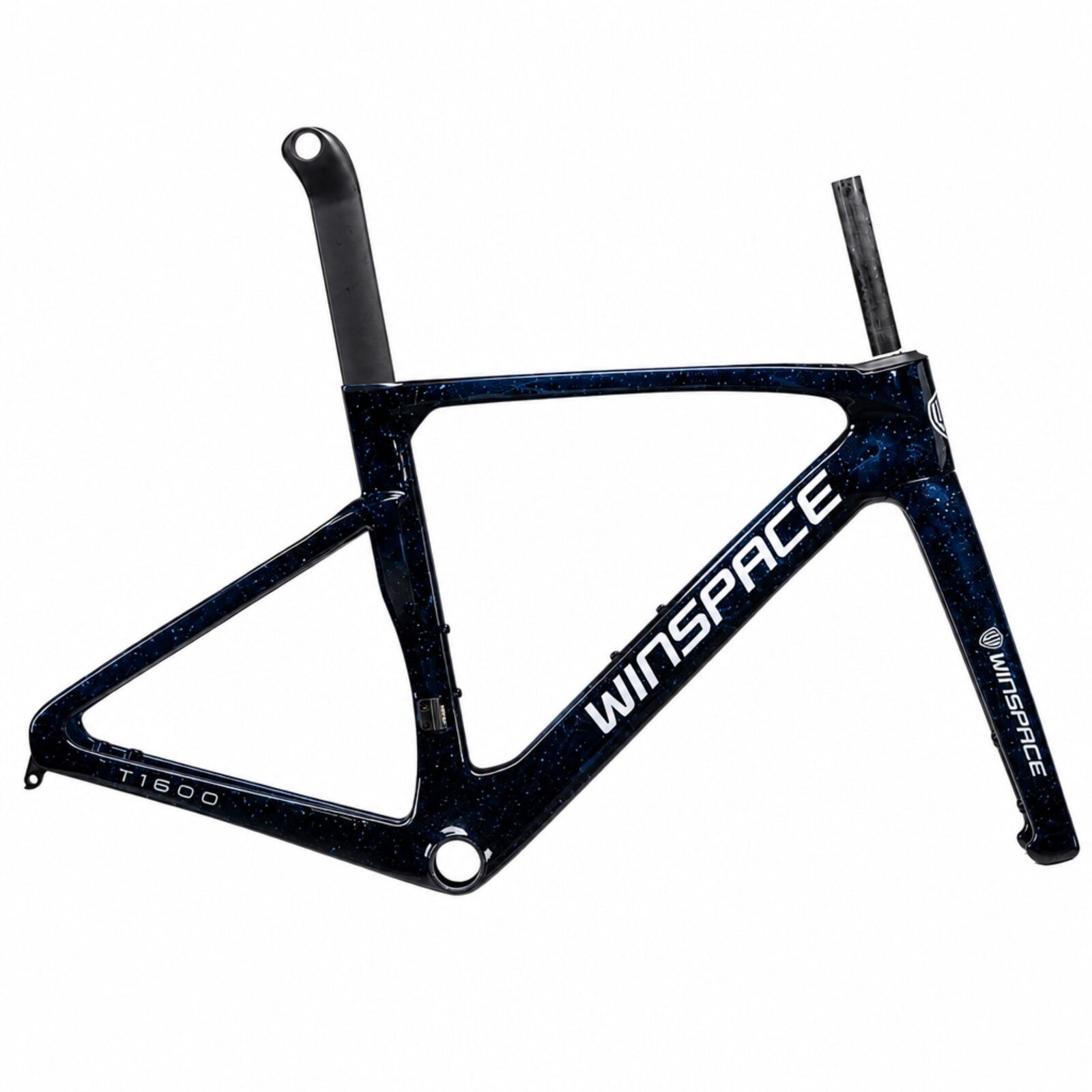

Winspace T1600 Aero Disc Brake Frameset - Deep Space, XS (440)
Race-bred aero carbon that doesn't ask for permission.
The Winspace T1600 is a full-send race frameset — CFD-shaped tube profiles, aggressive race geometry, and full internal electronic routing built for riders who have no interest in compromise. Five sizes from XS (440mm) to XL (540mm), flat-mount disc brakes, T47 threaded bottom bracket, and 32mm tyre clearance: everything a modern race bike needs, nothing it doesn't.
This listing is for the Deep Space colourway — see below for what makes it distinctive.
Go Fast. Stay Dark. Deep Space is a near-black navy that absorbs light and refuses to show off — until you're already 50 metres up the road. A colourway for riders who let performance do the talking.
What makes this worth it
Race-Focused Aero Geometry
Long reach, low stack, immediate handling response. Built for riders who demand a race machine, not a compromise between speed and comfort.
CFD-Refined Tube Profiles
Wind-tunnel-optimised shaping cuts aerodynamic drag without sacrificing stiffness or road feel. The kind of speed you can feel immediately at threshold.
Electronic-Only Internal Routing
Full internal cable routing for SRAM AXS, Shimano Di2, and Campagnolo EPS — clean lines through frame, fork, and compatible integrated bars.
T47 Threaded Bottom Bracket
No creaking. No fretting. No press-fit guesswork. The T47 standard is easy to service anywhere in the world and compatible with every modern crankset.
Flat-Mount Disc & 12mm Thru-Axles
Flat-mount calipers front and rear. 12mm thru-axles ensure precise wheel alignment and race-confident braking in any weather condition.
32mm Tyre Clearance
Run 28-32mm tyres for the speed, compliance, and rolling efficiency that modern contact patches deliver. No need to sacrifice grip for aero.
Specifications
| Brand | Winspace |
| Model | T1600 Aero Disc Road Frameset |
| Finish | Deep Space Navy (Gloss) |
| Frame Material | High-Modulus Carbon Fibre |
| Brake Type | Flat-Mount Disc Only |
| Groupset Compatibility | Electronic Only (SRAM AXS, Shimano Di2, Campagnolo EPS) |
| Cable Routing | Fully Internal |
| Bottom Bracket | T47 Inboard Threaded |
| Axle Standard | 12mm Thru-Axle F&R (12x100mm / 12x142mm) |
| Tyre Clearance | Up to 32mm |
| Frame Sizes | XS (440mm), S (470mm), M (490mm), L (510mm), XL (540mm) |
| Includes | Frame, Carbon Fork, Aero Seatpost, Headset & Spacers, Thru-Axles, Hardware Kit |
| Stem / Handlebar | Not Included |
What's Included. Winspace T1600 Carbon Frame (Deep Space), Carbon Fork (Tapered Steerer), Aero Carbon Seatpost, Integrated Headset & Spacers, Front & Rear 12mm Thru-Axles, Small Parts & Hardware Kit. Stem/integrated bar not included. Electronic drivetrain compatibility only — mechanical cable routing not supported.
(WFT160DS)
Race-Focused Aero Geometry
Long reach, low stack, immediate handling response. Built for riders who demand a race machine, not a compromise between speed and comfort.
CFD-Refined Tube Profiles
Wind-tunnel-optimised shaping cuts aerodynamic drag without sacrificing stiffness or road feel. The kind of speed you can feel immediately at threshold.
Electronic-Only Internal Routing
Full internal cable routing for SRAM AXS, Shimano Di2, and Campagnolo EPS — clean lines through frame, fork, and compatible integrated bars.
T47 Threaded Bottom Bracket
No creaking. No fretting. No press-fit guesswork. The T47 standard is easy to service anywhere in the world and compatible with every modern crankset.
Flat-Mount Disc & 12mm Thru-Axles
Flat-mount calipers front and rear. 12mm thru-axles ensure precise wheel alignment and race-confident braking in any weather condition.
32mm Tyre Clearance
Run 28-32mm tyres for the speed, compliance, and rolling efficiency that modern contact patches deliver. No need to sacrifice grip for aero.
| Brand | Winspace |
| Model | T1600 Aero Disc Road Frameset |
| Finish | Deep Space Navy (Gloss) |
| Frame Material | High-Modulus Carbon Fibre |
| Brake Type | Flat-Mount Disc Only |
| Groupset Compatibility | Electronic Only (SRAM AXS, Shimano Di2, Campagnolo EPS) |
| Cable Routing | Fully Internal |
| Bottom Bracket | T47 Inboard Threaded |
| Axle Standard | 12mm Thru-Axle F&R (12x100mm / 12x142mm) |
| Tyre Clearance | Up to 32mm |
| Frame Sizes | XS (440mm), S (470mm), M (490mm), L (510mm), XL (540mm) |
| Includes | Frame, Carbon Fork, Aero Seatpost, Headset & Spacers, Thru-Axles, Hardware Kit |
| Stem / Handlebar | Not Included |
| SKU | WFT160DS |
| Brand | Winspace |
| Shipping Weight | 2.5000kg |
