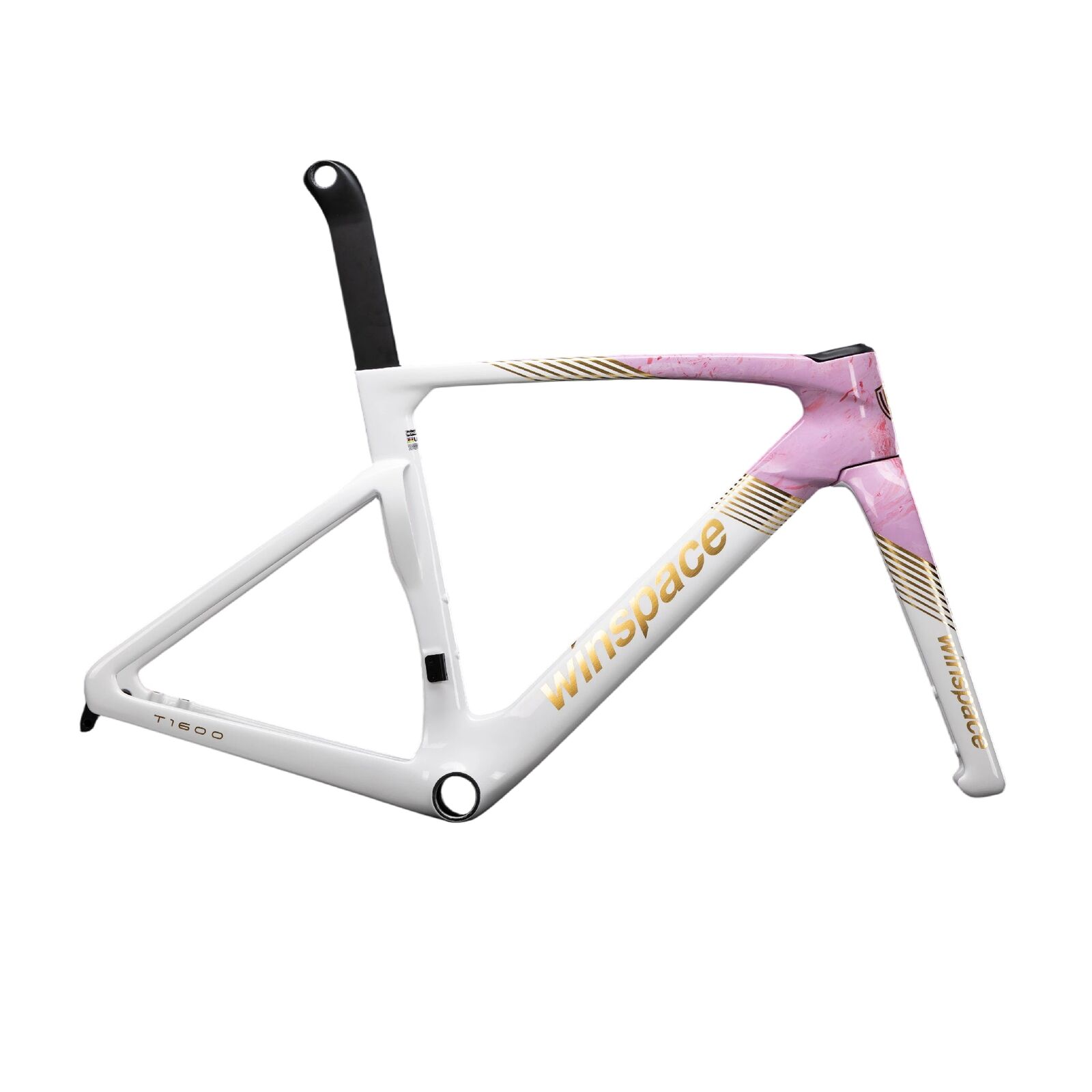

Winspace T1600 Aero Disc Brake Frameset - Maglia Rosa Champion, XS (440)
Race-bred aero carbon that doesn't ask for permission.
The Winspace T1600 is a full-send race frameset — CFD-shaped tube profiles, aggressive race geometry, and full internal electronic routing built for riders who have no interest in compromise. Five sizes from XS (440mm) to XL (540mm), flat-mount disc brakes, T47 threaded bottom bracket, and 32mm tyre clearance: everything a modern race bike needs, nothing it doesn't.
This listing is for the Maglia Rosa Champion colourway — see below for what makes it distinctive.
Wear the Champion's Colour. The Maglia Rosa is cycling's most coveted honour. This electroplated champion's pink is bold, immaculate, and reserved for riders who expect to be at the front. A premium finish at a premium level of intent.
What makes this worth it
Race-Focused Aero Geometry
Long reach, low stack, immediate handling response. Built for riders who demand a race machine, not a compromise between speed and comfort.
CFD-Refined Tube Profiles
Wind-tunnel-optimised shaping cuts aerodynamic drag without sacrificing stiffness or road feel. The kind of speed you can feel immediately at threshold.
Electronic-Only Internal Routing
Full internal cable routing for SRAM AXS, Shimano Di2, and Campagnolo EPS — clean lines through frame, fork, and compatible integrated bars.
T47 Threaded Bottom Bracket
No creaking. No fretting. No press-fit guesswork. The T47 standard is easy to service anywhere in the world and compatible with every modern crankset.
Flat-Mount Disc & 12mm Thru-Axles
Flat-mount calipers front and rear. 12mm thru-axles ensure precise wheel alignment and race-confident braking in any weather condition.
32mm Tyre Clearance
Run 28-32mm tyres for the speed, compliance, and rolling efficiency that modern contact patches deliver. No need to sacrifice grip for aero.
Specifications
| Brand | Winspace |
| Model | T1600 Aero Disc Road Frameset |
| Finish | Maglia Rosa Champion Pink (Electroplated) |
| Frame Material | High-Modulus Carbon Fibre |
| Brake Type | Flat-Mount Disc Only |
| Groupset Compatibility | Electronic Only (SRAM AXS, Shimano Di2, Campagnolo EPS) |
| Cable Routing | Fully Internal |
| Bottom Bracket | T47 Inboard Threaded |
| Axle Standard | 12mm Thru-Axle F&R (12x100mm / 12x142mm) |
| Tyre Clearance | Up to 32mm |
| Frame Sizes | XS (440mm), S (470mm), M (490mm), L (510mm), XL (540mm) |
| Includes | Frame, Carbon Fork, Aero Seatpost, Headset & Spacers, Thru-Axles, Hardware Kit |
| Stem / Handlebar | Not Included |
What's Included. Winspace T1600 Carbon Frame (Maglia Rosa Champion), Carbon Fork (Tapered Steerer), Aero Carbon Seatpost, Integrated Headset & Spacers, Front & Rear 12mm Thru-Axles, Small Parts & Hardware Kit. Stem/integrated bar not included. Electronic drivetrain compatibility only — mechanical cable routing not supported.
(WFT160MR)
Race-Focused Aero Geometry
Long reach, low stack, immediate handling response. Built for riders who demand a race machine, not a compromise between speed and comfort.
CFD-Refined Tube Profiles
Wind-tunnel-optimised shaping cuts aerodynamic drag without sacrificing stiffness or road feel. The kind of speed you can feel immediately at threshold.
Electronic-Only Internal Routing
Full internal cable routing for SRAM AXS, Shimano Di2, and Campagnolo EPS — clean lines through frame, fork, and compatible integrated bars.
T47 Threaded Bottom Bracket
No creaking. No fretting. No press-fit guesswork. The T47 standard is easy to service anywhere in the world and compatible with every modern crankset.
Flat-Mount Disc & 12mm Thru-Axles
Flat-mount calipers front and rear. 12mm thru-axles ensure precise wheel alignment and race-confident braking in any weather condition.
32mm Tyre Clearance
Run 28-32mm tyres for the speed, compliance, and rolling efficiency that modern contact patches deliver. No need to sacrifice grip for aero.
| Brand | Winspace |
| Model | T1600 Aero Disc Road Frameset |
| Finish | Maglia Rosa Champion Pink (Electroplated) |
| Frame Material | High-Modulus Carbon Fibre |
| Brake Type | Flat-Mount Disc Only |
| Groupset Compatibility | Electronic Only (SRAM AXS, Shimano Di2, Campagnolo EPS) |
| Cable Routing | Fully Internal |
| Bottom Bracket | T47 Inboard Threaded |
| Axle Standard | 12mm Thru-Axle F&R (12x100mm / 12x142mm) |
| Tyre Clearance | Up to 32mm |
| Frame Sizes | XS (440mm), S (470mm), M (490mm), L (510mm), XL (540mm) |
| Includes | Frame, Carbon Fork, Aero Seatpost, Headset & Spacers, Thru-Axles, Hardware Kit |
| Stem / Handlebar | Not Included |
| SKU | WFT160MR |
| Brand | Winspace |
| Shipping Weight | 2.5000kg |
